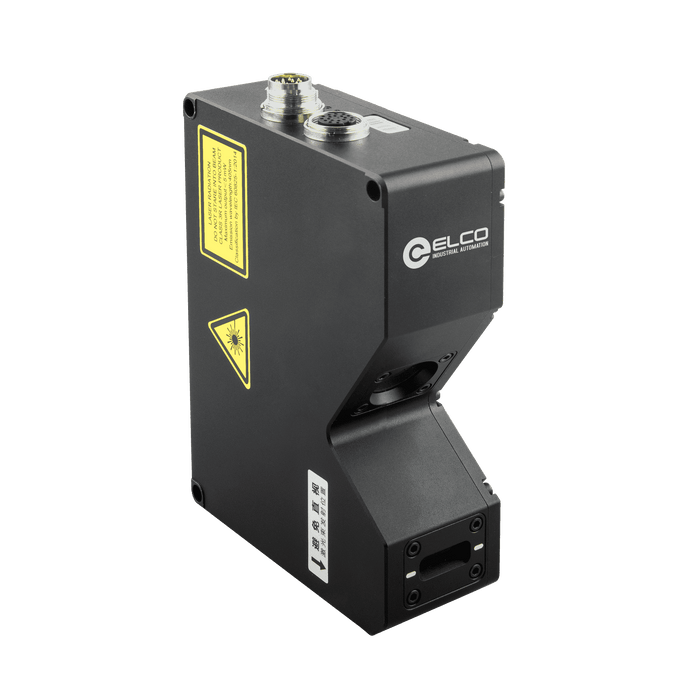

3D Laser profile sensor, LVM21 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 52 ... 78 mm, FOV 19 ... 23 mm,Data points 1456, Scan rate 270 ... 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 ... 48 VDC, 0...50 °C, IP67

Specifications

Data points 1456
Clearance distance 52 mm
Temperature characteristic ±0.01% of MR
Repeatability(z axis) 0.5 μm
Laser wavelength 405 nm
Ambient light Incandescent lamp: less than 10000 lux
IP rating IP67
Housing material Aluminium alloy
Dimensions 44 × 111.5 × 150 mm
Storage temperature -30 ... +70

No additional information at this time.

Downloads

CE CE_CS_LVM2 Series_V1.0.pdf
FCC FCC_CS_LVM2 Series_V1.0.pdf
Datasheet ELCO_LVM2120_DataSheet_EN.pdf
Datasheet ELCO_LVM2120_DataSheet_CN.pdf
3D Drawing ELCO_LVM2120.step
Manual ELCO_3D sensor_Manual_EN.pdf
Manual ELCO_3D sensor_Manual_CN.pdf
Configuration application LVM-V2.5.0.14-Setup.zip
