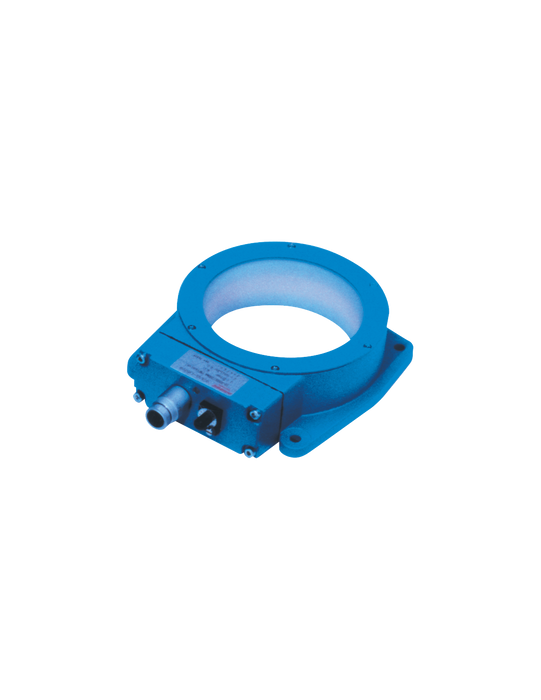

Altech KJR-D70AN-DNIA-V2 NPN Output, High Sensitivity Ring Sensor

Altech KJR-D70AN-DNIA-V2 NPN Output, High Sensitivity Ring Sensor

SKU KJR-D70AN-DNIA-V2
by Altech
$5,493.91 - $5,493.91
$5,493.91
$5,493.91 - $5,493.91
$5,493.91
Availability:
In stock

High Sensitivity Ring Sensor

Standard Features

  • High Sensitivity (0.6mm)
  • 10-30VDC Supply
  • Detection and Counting Application
  • Compact and Robust Design
  • Dynamic Sensor Technology
  • Various Ring Diameters

Specifications

Part Number KJR-D70AN-DNIA-V2
Output Type NPN
Ring Diameter 70mm (2.76in.)
Sensitivity 1.0mm (0.04in.)
Output NO/NC
Switching Frequency 100Hz
Switching State LED
Connector M12, 4 pole
Operating Voltage 11-30V DC
Off-state Current ≤25mA
Max. Load Current 50mA
Residual Current ≤10µA
Ripple Voltage ≤10%
Voltage Drop ≤2.4V
Hysteresis ≤15%
Operating Temp. -25°C to +70°C (-13°F to +158°F)
Protection Class IP54
Housing Material Aluminum

Documents

No additional information at this time.
