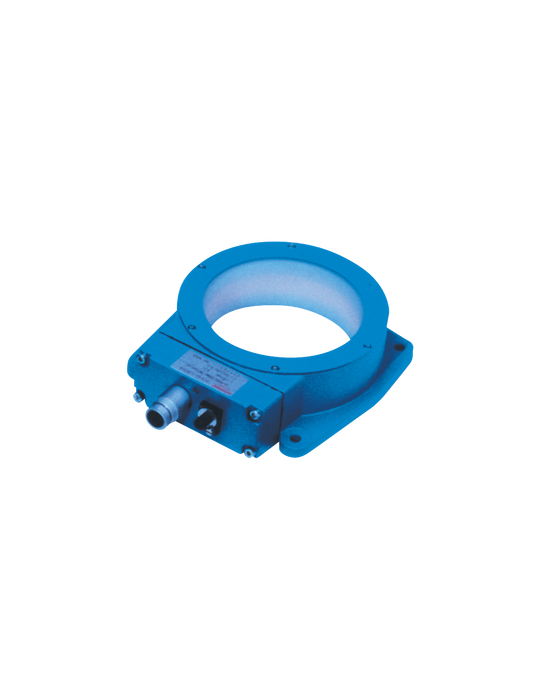

Altech KJR-D100FAN-DNA-V2 NPN Output, Normal Sensitivity Ring Sensor

Altech KJR-D100FAN-DNA-V2 NPN Output, Normal Sensitivity Ring Sensor

SKU KJR-D100FAN-DNA-V2
by Altech
$2,167.53 - $2,167.53
$2,167.53
$2,167.53 - $2,167.53
$2,167.53
Availability:
In stock

Normal Sensitivity Ring Sensor

Standard Features

  • 10-30VDC Supply
  • Detection and Counting Application
  • Compact and Robust Design
  • Static Sensor Technology
  • Various Ring Diameters (50-300mm)

Specifications

Part Number KJR-D100FAN-DNA-V2
Output Type NPN
Ring Diameter 100mm (3.94in.)
Sensitivity 8.0mm (0.31in.)
Output NO/NC
Switching Frequency 500Hz
Switching State LED
Connector M12, 4 pole
Operating Voltage 10-30V DC
Off-state Current ≤15mA
Max. Load Current 200mA
Residual Current ≤10µA
Ripple Voltage ≤10%
Voltage Drop ≤2.4V
Hysteresis ≤15%
Operating Temp. -25°C to +70°C (-13°F to +158°F)
Protection Class IP54
Housing Material Aluminum

Documents

No additional information at this time.
