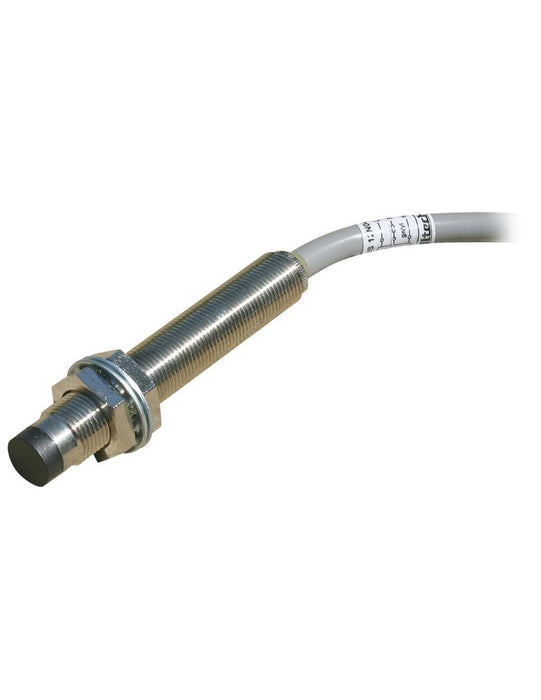

Altech AIS18N08RW220-2M M18 Non-Flush Mount Cylindrical Sensor, DC - 2 WIRE- STANDARD

Altech AIS18N08RW220-2M M18 Non-Flush Mount Cylindrical Sensor, DC - 2 WIRE- STANDARD

SKU AIS18N08RW220-2M
by Altech
$72.13 - $72.13
$72.13
$72.13 - $72.13
$72.13
Availability:
In stock

AIS18N08RW220-2M - M18 Non-Flush Mount Cylindrical Sensor, DC - 2 WIRE- STANDARD

Brass, Nickel Plated(BN), Cylindrical, Threaded, 90-250V AC, 250mA, LED for Output Energized

• IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection

• Overload Protection

• Wire Break Resistance

• Transient Voltage Protection

• Temperature Range: -25 to 70°C (-13 to 158°F)

Fixed Cable

PVC 2m (6ft. 6in.). For other cable lengths and/or PUR cable, please consult Altech. Supplied with brass, nickel plated locknuts.

Specifications

Part Number AIS18N08RW220-2M
Sensing Distance 10mm (.39 in.)
Ripple Voltage –
Voltage Range 90-250V
No-Load Current ≥10mA
Sensor -Max. Load Current 250 mA
Voltage Drop Across Sensor ≤9V
Max. Leakage Currrent ≤3mA
Switching Frequency 10 Hz
Hysterisis ≤0.8mm
Temperature Drift ≤±16μm/K
Repeatability ≤0.4mm

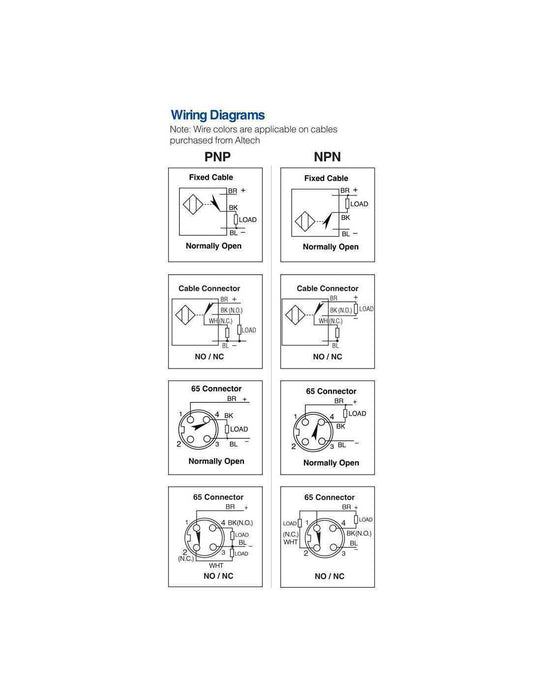

Output Configuration NPN - Normally Open / Complementary NO/NC

Documents

No additional information at this time.
