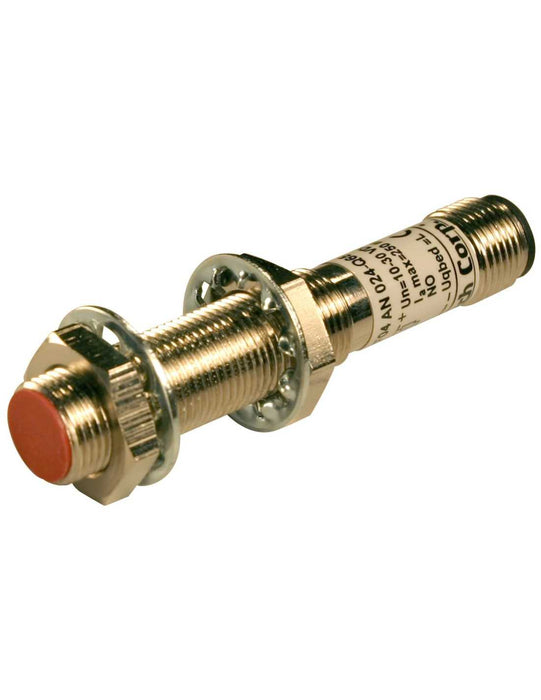

Altech AIS12N04AN024-Q65 M12 Non-Flush Mount Cylindrical Sensor, DC - 2 WIRE-STANDARD

Altech AIS12N04AN024-Q65 M12 Non-Flush Mount Cylindrical Sensor, DC - 2 WIRE-STANDARD

SKU AIS12N04AN024-Q65
by Altech
$60.32 - $60.32
$60.32
$60.32 - $60.32
$60.32
Availability:
In stock

AIS12N04AN024-Q65 - M12 Non-Flush Mount Cylindrical Sensor, DC - 2 WIRE-STANDARD

M12 Brass, Nickel Plated (BN), Cylindrical, Threaded, 10-30V DC, 250mA, LED for Output Energized

• IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection

• Short Circuit Protection

• Overload Protection

• Reverse Polarity Protection

• Wire Break Resistance

• Transient Voltage Protection

• Temperature Range: -25 to 70°C (-13 to 158°F)

Fixed Cable

PVC 2m (6ft. 6in.). For other cable lengths and/or PUR cable, please consult Altech. M8 is supplied with stainless steel locknuts and M12 is supplied with brass, nickel plated locknuts

Specifications

Part Number AIS12N04AN024-Q65
Sensing Distance 10mm (.39 in.)
Cable or Connector Style 65
Ripple Voltage ≤ 10%
Voltage Range 10-30V
No-Load Current ≤ 15mA
Sensor -Max. Load Current 250 mA
Voltage Drop Across Sensor ≤ 2.5V
Max. Leakage Currrent 1μA
Switching Frequency 1000 Hz
Hysterisis ≤0.6mm
Temperature Drift ±8μm/K
Repeatability ≤ 0.3mm

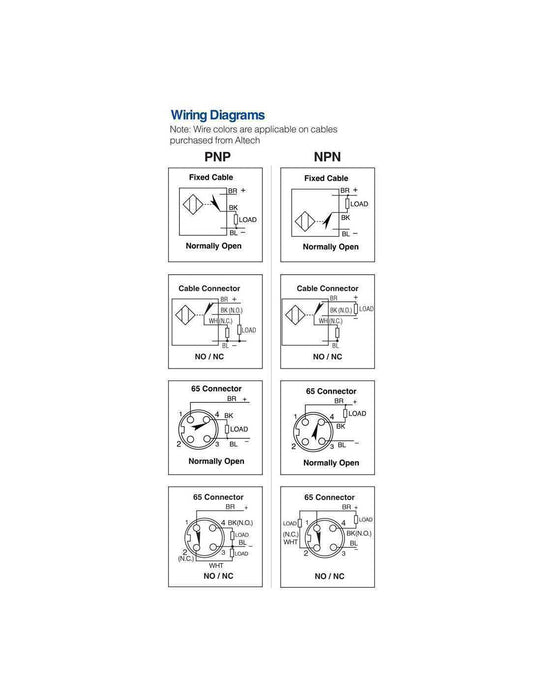

Output Configuration NPN - Normally Open / Complementary NO/NC
