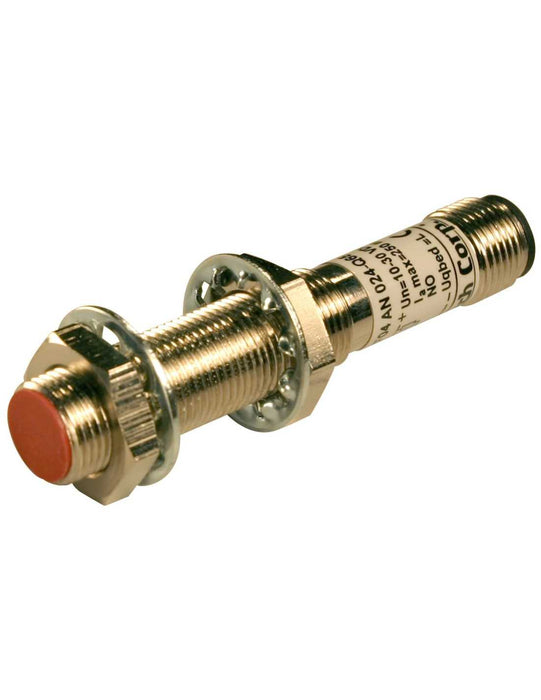

Altech AIS12F02UP024-Q65 M12 Flush Mount Cylindrical Sensor, DC - 3 WIRE-STANDARD

Altech AIS12F02UP024-Q65 M12 Flush Mount Cylindrical Sensor, DC - 3 WIRE-STANDARD

SKU AIS12F02UP024-Q65
by Altech
$57.41 - $57.41
$57.41
$57.41 - $57.41
$57.41
Availability:
In stock

AIS12F02UP024-Q65 - M12 Flush Mount Cylindrical Sensor, DC - 3 WIRE-STANDARD

M12 Brass, Nickel Plated (BN), Cylindrical, Threaded, 10-30V DC, 250mA, LED for Output Energized

• IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection

• Short Circuit Protection

• Overload Protection

• Reverse Polarity Protection

• Wire Break Resistance

• Transient Voltage Protection

• Temperature Range: -25 to 70°C (-13 to 158°F)

65 Style Connector

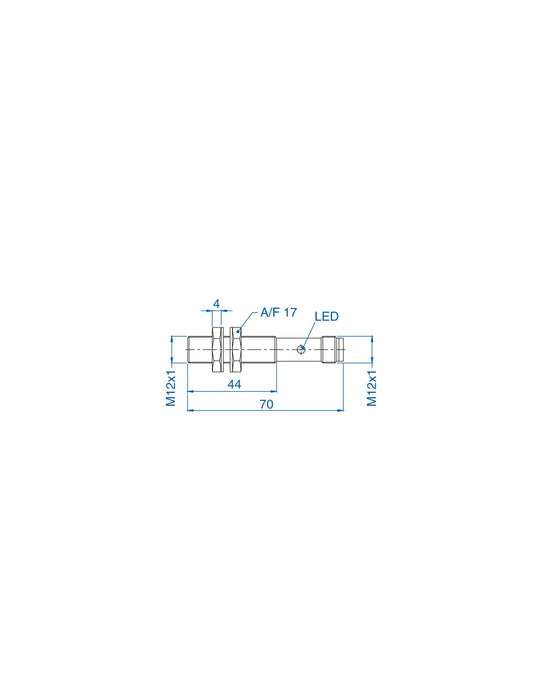

4-pin, Micro style, 12mm (.47 in.). M8 is supplied with stainless steel locknuts and M12 is supplied with brass, nickel plated locknuts.

Specifications

Part Number AIS12F02UP024-Q65
Sensing Distance 10mm (.39 in.)
Cable or Connector Style 65
Ripple Voltage ≤ 10%
Voltage Range 10-30V
No-Load Current ≤ 15mA
Sensor -Max. Load Current 250 mA
Voltage Drop Across Sensor ≤ 2.5V
Max. Leakage Currrent 1μA
Switching Frequency 1000 Hz
Hysterisis ≤ 0.2mm
Temperature Drift ±4μm/K
Repeatability ≤ 0.1mm

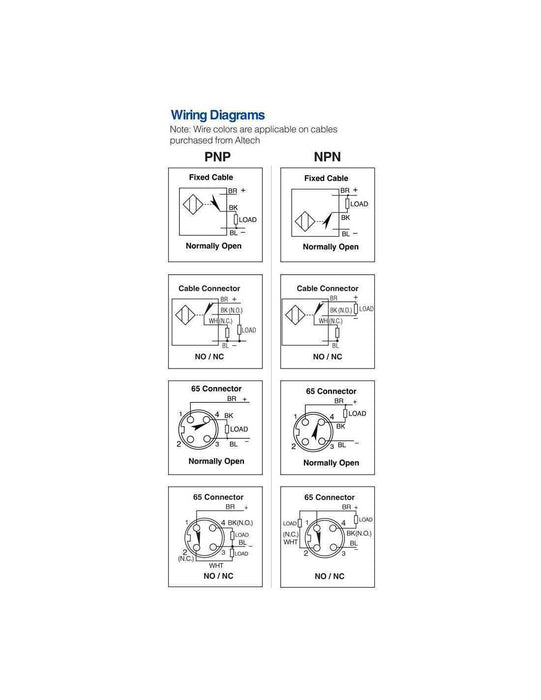

Output Configuration NPN - Normally Open / Complementary NO/NC
