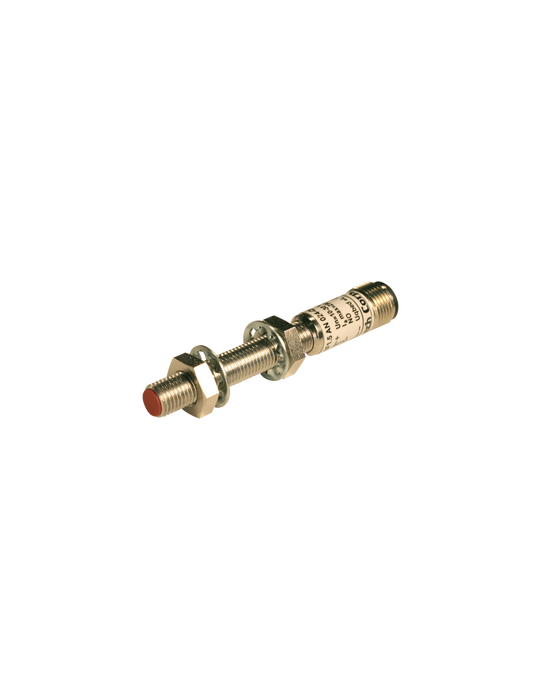

Altech AIS08F1.5AN024-Q65 M8 Flush Mount Cylindrical Sensor, DC - 3 WIRE-STANDARD

Altech AIS08F1.5AN024-Q65 M8 Flush Mount Cylindrical Sensor, DC - 3 WIRE-STANDARD

SKU AIS08F1.5AN024-Q65
by Altech
$66.26 - $66.26
$66.26
$66.26 - $66.26
$66.26
Availability:
In stock

AIS08F1.5AN024-Q65 - Cylindrical Sensor, DC - 3 WIRE-STANDARD

M8 Stainless Steel (SS), Cylindrical, Threaded, 10-30V DC, 250mA, LED for Output Energized

• IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection

• Short Circuit Protection

• Overload Protection

• Reverse Polarity Protection

• Wire Break Resistance

• Transient Voltage Protection

• Temperature Range: -25 to 70°C (-13 to 158°F)

Specifications

Part Number AIS08F1.5AN024-Q65
Sensing Distance 10mm (.39 in.)

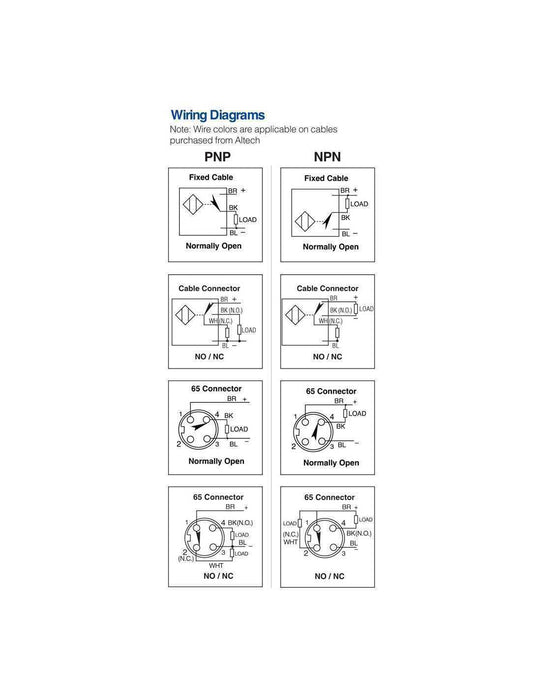

Cable or Connector Style 65
Ripple Voltage ≤ 10%
Voltage Range 10-30V
No-Load Current ≤ 11 mA
Sensor -Max. Load Current 250 mA
Voltage Drop Across Sensor ≤ 1.3V
Max. Leakage Currrent ≤ 1 μA
Switching Frequency 2000 Hz
Hysterisis ≤ 0.15mm
Temperature Drift ≤ ±3μm/K
Repeatability ≤ 0.05mm
Output Configuration NPN - Normally Open / Complementary NO/NC
