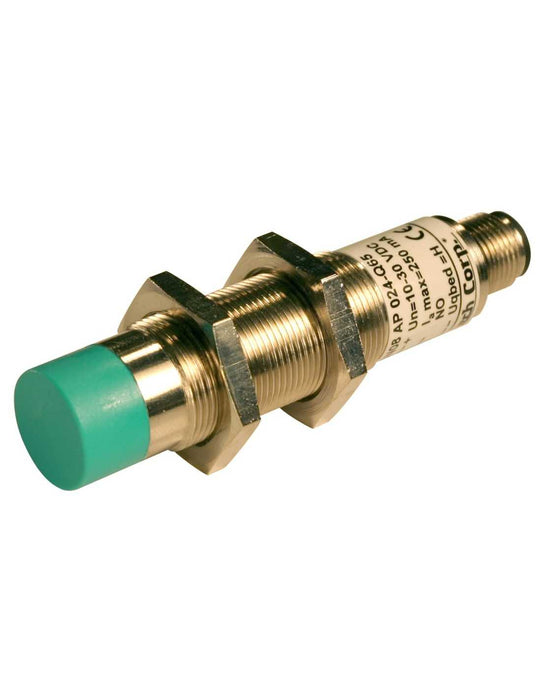

Altech AIK12F02AN024-Q65 M12 Flush Mount Cylindrical Sensor, DC - 3 WIRE- SHORT BODY

Altech AIK12F02AN024-Q65 M12 Flush Mount Cylindrical Sensor, DC - 3 WIRE- SHORT BODY

SKU AIK12F02AN024-Q65
by Altech
$53.72 - $53.72
$53.72
$53.72 - $53.72
$53.72
Availability:
In stock

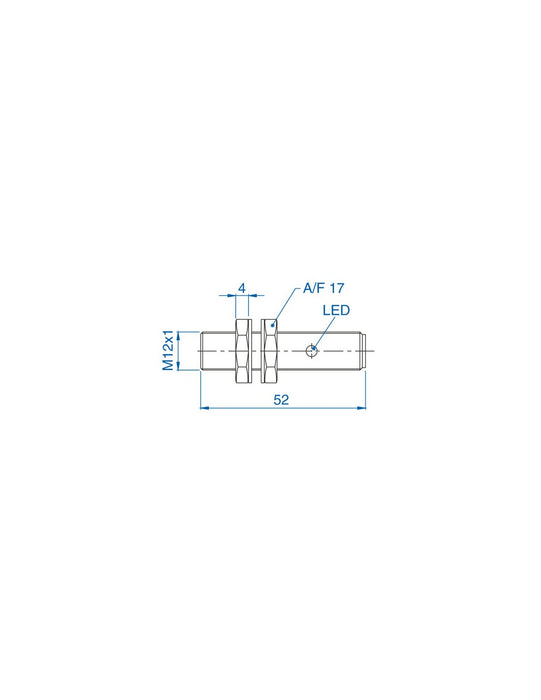

AIK12F02AN024-Q65 - M12 Flush Mount Cylindrical Sensor, DC - 3 WIRE- SHORT BODY

Brass, Nickel Plated(BN), Cylindrical, Threaded, 10-30V DC, 250mA, LED for Output Energized

• IEC (529) IP67 (NEMA 1, 3, 4, 6, 12, 13) Protection

• Short Circuit Protection

• Overload Protection

• Reverse Polarity Protection

• Wire Break Resistance

• Transient Voltage Protection

• Temperature Range: -25 to 70°C (-13 to 158°F)

Fixed Cable

PVC 2m (6ft. 6in.). For other cable lengths and/or PUR cable, please consult Altech. Supplied with brass, nickel plated locknuts.

Specifications

Part Number AIK12F02AN024-Q65
Sensing Distance 10mm (.39 in.)
Cable or Connector Style 65
Ripple Voltage ≤ 10%
Voltage Range 10-30V
No-Load Current ≤ 15mA
Sensor -Max. Load Current 250 mA
Voltage Drop Across Sensor ≤ 2.5V
Max. Leakage Currrent ≤ 1 μA
Switching Frequency 1000 Hz
Hysterisis ≤ 0.2mm
Temperature Drift ±4μm/K
Repeatability ≤ 0.1mm

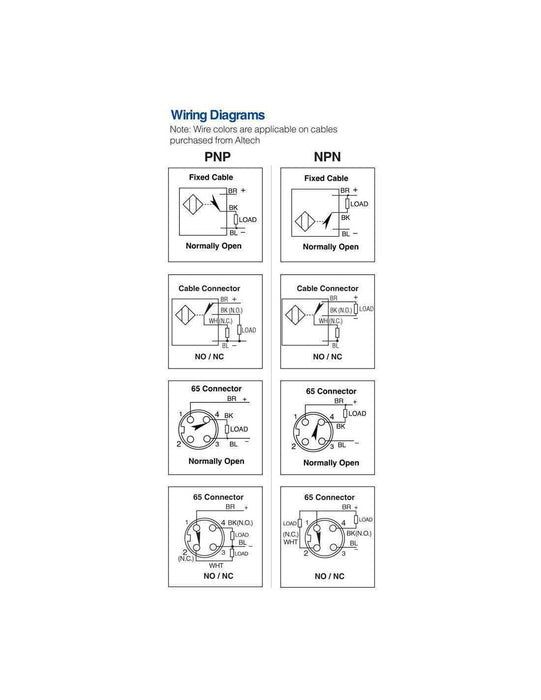

Output Configuration NPN - Normally Open / Complementary NO/NC
