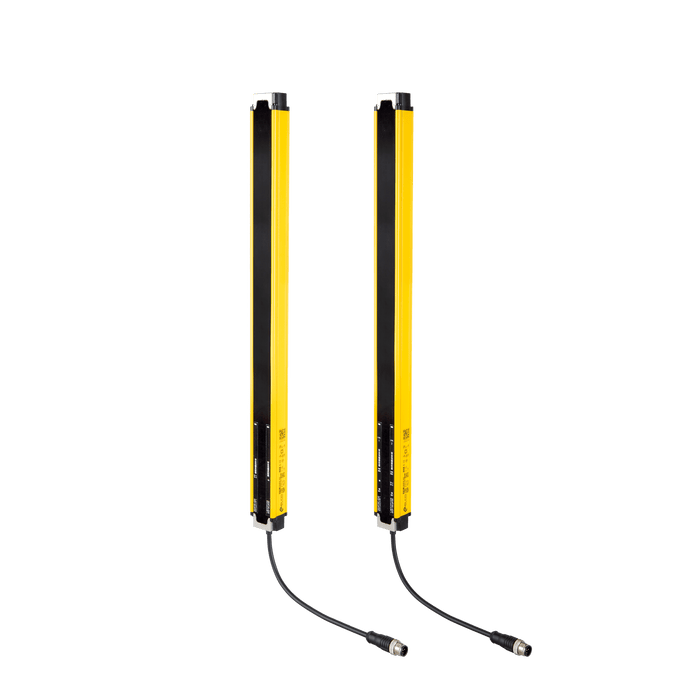

SE4 safety light curtain, Type 4, Optical synchronization, Automatic reset, Output type PNP/NPN, Resolution 50 mm, Protective height 1050 mm, Operating range 16 m, Cable 0.3 m with M12 connector plug.

SE4P50-1050L

SKU SE4P50-1050L
by ELCO Industrial Automation

SE4 safety light curtain, Type 4, Optical synchronization, Automatic reset, Output type PNP/NPN, Resolution 50 mm, Protective height 1050 mm, Operating range 16 m, Cable 0.3 m with M12 connector plug.

$1,146.25 - $1,146.25
$1,146.25
$1,146.25 - $1,146.25
$1,146.25
Availability:
In stock

SE4 safety light curtain, Type 4, Optical synchronization, Automatic reset, Output type PNP/NPN, Resolution 50 mm, Protective height 1050 mm, Operating range 16 m, Cable 0.3 m with M12 connector plug.

Specifications

Functions Automatic reset
Resolution 50 mm
Protective height 1050 mm
IP rating IP65
Connection Cable 0.3 m with M12 connector plug
Supply voltage 24 V DC
Product series SE4
Operating range 16 m
Safety degree SIL 3, TYPE 4
Output type 2xPNP/NPN OSSDs
Ambient temperature -10 ... +55 °C

No additional information at this time.

Downloads

CE CE_SF_SE4_V1.1_EN.pdf
TUV TUEV_SF_SE4_V1.1_EN.pdf
Datasheet DS_SF_SE4_V1.4_EN.pdf
Datasheet DS_SF_SE4_V1.0_CN.pdf
3D Drawing CAD_SF_SE4-1050_V1.2.stp
Manual UM_SF_SE4_V1.2_EN&CN.pdf
