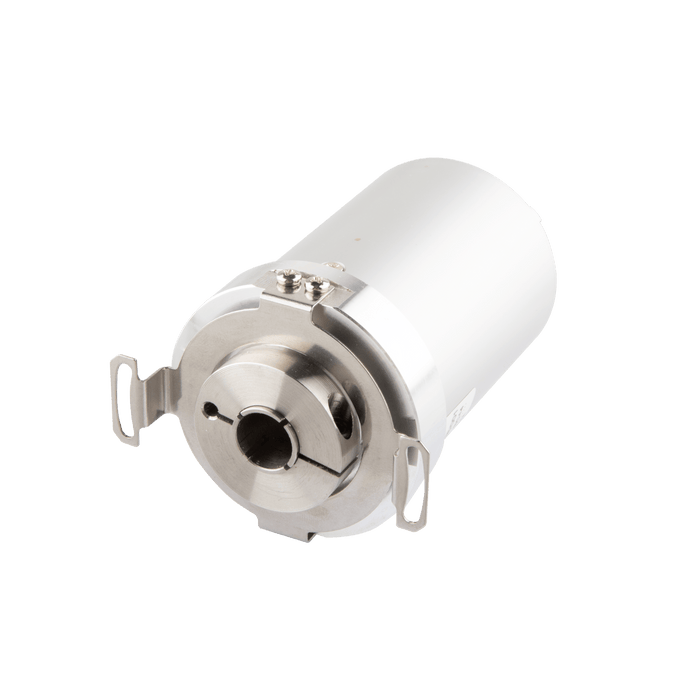

Absolute multiturn magnetic encoder, Series EAM58-PNOM, Flange double-wing fixing plate, Hollow Shaft 12H7 mm, 10...30 VDC, PROFINET IO interface, Axial, 3x M12 connectors, Resoluteion 4096/262144

EAM58W12-BF6XTR-4096/262144PNOM

SKU EAM58W12-BF6XTR-4096/262144PNOM
by ELCO Industrial Automation

Absolute multiturn magnetic encoder, Series EAM58-PNOM, Flange double-wing fixing plate, Hollow Shaft 12H7 mm, 10...30 VDC, PROFINET IO interface, Axial, 3x M12 connectors, Resoluteion 4096/262144

$1,013.96 - $1,013.96
$1,013.96
$1,013.96 - $1,013.96
$1,013.96
Availability:
In stock

Absolute multiturn magnetic encoder, Series EAM58-PNOM, Flange double-wing fixing plate, Hollow Shaft 12H7 mm, 10...30 VDC, PROFINET IO interface, Axial, 3x M12 connectors, Resoluteion 4096/262144

Specifications

Model Absolute Multiturn Encoder
Vibration resistance 10 g, 10 ... 2000 Hz
Relative humidity/condensation 90 % Condensation not permitted
Ambient temperature -40 ... +80 °C
Weight 600 g
Resolution 262144 ppr
Supply voltage 10 ... 30 V DC
Interface type PROFINET
Output code Binary
Connection type M

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAM58-PNOM_V1.0_EN.pdf
3D Drawing CAD_E_EAM58W12-BF6XTR-xxxx-xxxxPNOM_V1.0.stp
Manual UM_E_EAM58-PNOM_V1.0_EN&CN.pdf
Configuration file Config_E_EAM58-PNOM_V1.0.zip
