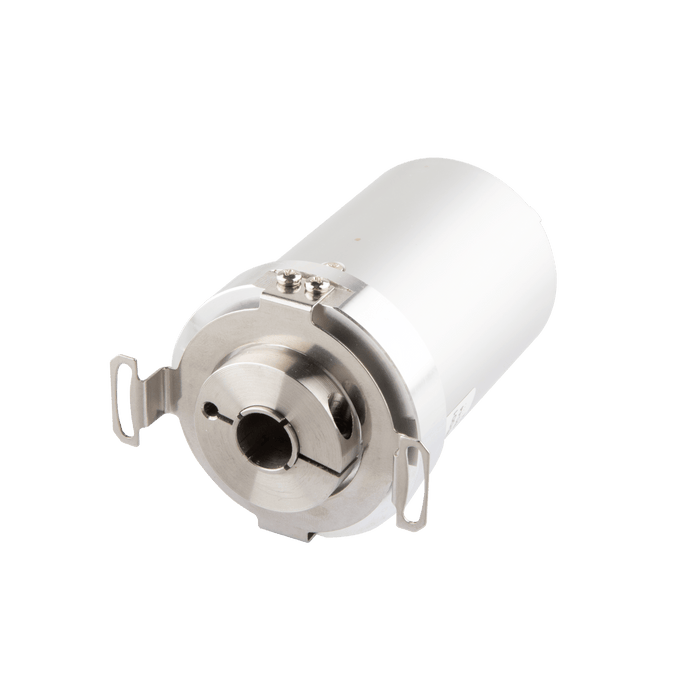

Absolute multiturn magnetic encoder, Series EAM58-PNOM, Flange double-wing fixing plate, Hollow Shaft Diameter 10H7 mm, 10...30 VDC, PROFINET IO interface, Axial, 3x M12 connectors, Resoluteion 4096/8192

EAM58W10-BF6XTR-4096/8192PNOM

SKU EAM58W10-BF6XTR-4096/8192PNOM
by ELCO Industrial Automation

Absolute multiturn magnetic encoder, Series EAM58-PNOM, Flange double-wing fixing plate, Hollow Shaft Diameter 10H7 mm, 10...30 VDC, PROFINET IO interface, Axial, 3x M12 connectors, Resoluteion 4096/8192

$730.35 - $730.35
$730.35
$730.35 - $730.35
$730.35
Availability:
In stock

Absolute multiturn magnetic encoder, Series EAM58-PNOM, Flange double-wing fixing plate, Hollow Shaft Diameter 10H7 mm, 10...30 VDC, PROFINET IO interface, Axial, 3x M12 connectors, Resoluteion 4096/8192

Specifications

Shock resistance 50 g, 11 ms
Vibration resistance 10 g, 10 ... 2000 Hz
Max load capacity of the shaft 40 N Axial80 N Radial
Moment of inertia 1.8 x 10-6 kgm2
Resolution 8192 ppr
Supply voltage 10 ... 30 V DC
Connection type M12 Socket
Model Absolute Multiturn Encoder
Housing material Al-alloy

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAM58-PNOM_V1.0_EN.pdf
3D Drawing CAD_E_EAM58W10-BF6XTR-xxxx-xxxxPNOM_V1.0.stp
Manual UM_E_EAM58-PNOM_V1.0_EN&CN.pdf
Configuration file Config_E_EAM58-PNOM_V1.0.zip
