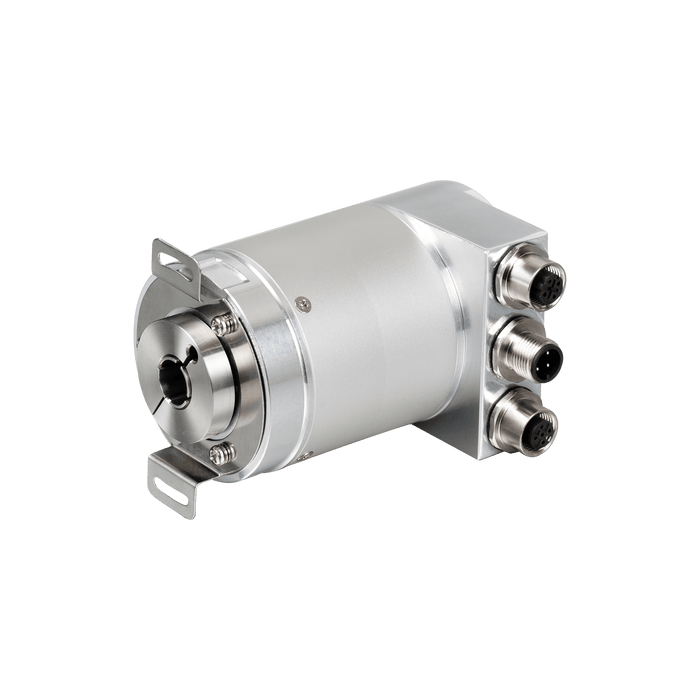

Absolute multiturn encoder, Series EAM58-PN, Flange double-wing fixing plate, Hollow shaft 15H7 mm, 10...30 VDC, PROFINET IO interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

EAM58W15-BF6XTR-4096/8192PN

SKU EAM58W15-BF6XTR-4096/8192PN
by ELCO Industrial Automation

Absolute multiturn encoder, Series EAM58-PN, Flange double-wing fixing plate, Hollow shaft 15H7 mm, 10...30 VDC, PROFINET IO interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

$827.02 - $827.02
$827.02
$827.02 - $827.02
$827.02
Availability:
In stock

Absolute multiturn encoder, Series EAM58-PN, Flange double-wing fixing plate, Hollow shaft 15H7 mm, 10...30 VDC, PROFINET IO interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

Specifications

Shock resistance 50 g, 11 ms
Vibration resistance 10 g, 10 ... 2000 Hz
Flange type Fixing plate
Shaft type Blind hollow shaft
Shaft diameter 15 mm
Max load capacity of the shaft 80 N Axial160 N Radial
Max speed(rpm) 6000 rpm
Moment of inertia 1.8 x 10-6 kgm2
Starting torque ＜ 0.05 Nm

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAM58-PN_V1.0_EN.pdf
3D Drawing CAD_E_EAM58W15-BF6XTR-xxxx-xxxxPN(PNMC)_V1.0.stp
Manual UM_E_EAM58-PN_V1.0_EN&CN.pdf
Configuration file Config_E_EAM58-PN_V1.0.zip
