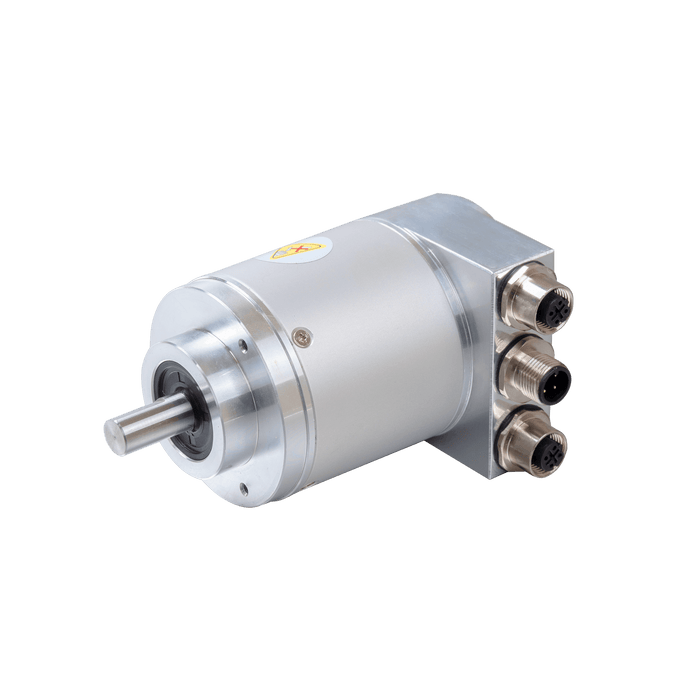

Absolute multiturn encoder, Series EAM58-PN, 36 mm clamping flange, Shaft length 20 mm, Shaft 10g6 mm, 10...30 VDC, PROFINET IO interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

EAM58C10-BF6XTR-4096/8192PN

SKU EAM58C10-BF6XTR-4096/8192PN
by ELCO Industrial Automation

Absolute multiturn encoder, Series EAM58-PN, 36 mm clamping flange, Shaft length 20 mm, Shaft 10g6 mm, 10...30 VDC, PROFINET IO interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

$1,003.86 - $1,003.86
$1,003.86
$1,003.86 - $1,003.86
$1,003.86
Availability:
In stock

Absolute multiturn encoder, Series EAM58-PN, 36 mm clamping flange, Shaft length 20 mm, Shaft 10g6 mm, 10...30 VDC, PROFINET IO interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

Specifications

Model Absolute Multiturn Encoder
Shock resistance 50 g, 11 ms
Vibration resistance 10 g, 10 ... 2000 Hz
IP rating IP65
Housing material Al-alloy
Housing diameter 58 mm
Flange type Clamping flange
Shaft type Solid shaft
Shaft diameter 10 mm
Max load capacity of the shaft 80 N Axial160 N Radial

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
UL UL_E_EAB-EAC-EAM-PAM_V1.0_EN.pdf
Datasheet DS_E_EAM58-PN_V1.0_EN.pdf
3D Drawing CAD_E_EAM58C10-BF6XTR-xxxx-xxxxPN(PNMC)_V1.0.stp
Manual UM_E_EAM58-PN_V1.0_EN&CN.pdf
Configuration file Config_E_EAM58-PN_V1.0.zip
