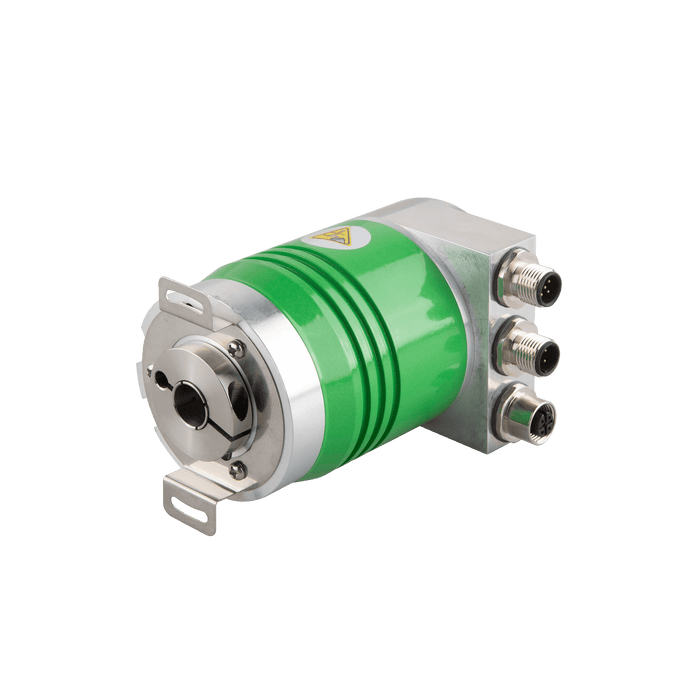

Absolute multiturn encoder, Series EAM58-DP, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, 10...30 VDC, Profibus-DP interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

EAM58W10-BF6XTR-4096/8192DP

SKU EAM58W10-BF6XTR-4096/8192DP
by ELCO Industrial Automation

Absolute multiturn encoder, Series EAM58-DP, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, 10...30 VDC, Profibus-DP interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

$987.83 - $987.83
$987.83
$987.83 - $987.83
$987.83
Availability:
In stock

Absolute multiturn encoder, Series EAM58-DP, Double-winged spring installation, Hollow Shaft Diameter 10H7 mm, 10...30 VDC, Profibus-DP interface, Radial, 3x M12 connectors, Resoluteion 4096/8192

Specifications

Model Absolute Multiturn Encoder
Shaft type Blind hollow shaft
Housing material Al-alloy
Flange type Fixing plate
Max speed(rpm) 6000 rpm
Moment of inertia 1.8 x 10-6 kgm2
Starting torque ＜ 0.05 N·m
Shock resistance 50 g, 11 ms
Vibration resistance 10 g, 10 ... 2000 Hz

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
Datasheet DS_E_EAM58-DP_V1.0_EN.pdf
3D Drawing CAD_E_EAM58W10-BF6XTR-xxxx-xxxxDP(Green)_V1.0.stp
Manual UM_E_EAC58(EAM58)-DP_V1.0_EN&CN.pdf
Configuration file Config_E_EAM90-DP_EAM58-DP_EAC58-DP_V1.0.zip
