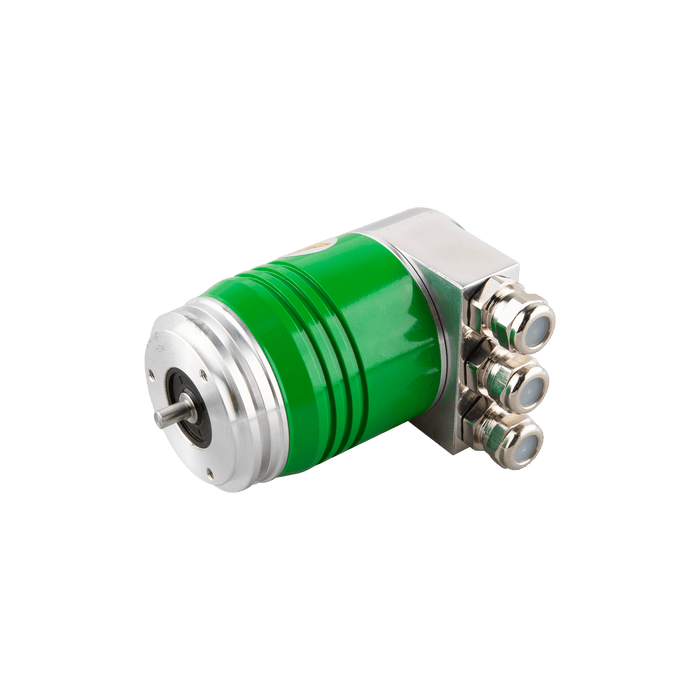

Absolute multiturn encoder, Series EAM58-DP, Flange synchro, Shaft length 10 mm, Shaft 6g6 mm, 10...30 VDC, Profibus-DP interface, Radial, Integrated coupler terminal box with 3 PG7 threaded connectors, Resoluteion 4096/8192

EAM58B6-BF6XXR-4096/8192DP

SKU EAM58B6-BF6XXR-4096/8192DP
by ELCO Industrial Automation

Absolute multiturn encoder, Series EAM58-DP, Flange synchro, Shaft length 10 mm, Shaft 6g6 mm, 10...30 VDC, Profibus-DP interface, Radial, Integrated coupler terminal box with 3 PG7 threaded connectors, Resoluteion 4096/8192

$869.40 - $869.40
$869.40
$869.40 - $869.40
$869.40
Availability:
In stock

Absolute multiturn encoder, Series EAM58-DP, Flange synchro, Shaft length 10 mm, Shaft 6g6 mm, 10...30 VDC, Profibus-DP interface, Radial, Integrated coupler terminal box with 3 PG7 threaded connectors, Resoluteion 4096/8192

Specifications

Model Absolute Multiturn Encoder
Housing material Al-alloy
Housing diameter 58 mm
IP rating IP65
Flange type Synchro flange
Shaft type Solid shaft
Shaft diameter 6 mm
Max load capacity of the shaft 80 N Axial160 N Radial
Max speed(rpm) 6000 rpm
Shock resistance 50 g, 11 ms
Vibration resistance 1

No additional information at this time.

Downloads

CE CE_E_EAC-EAM-EMM-EXAAL-EXAST_V1.0_EN.pdf
UL UL_E_EAB-EAC-EAM-PAM_V1.0_EN.pdf
Datasheet DS_E_EAM58-DP_V1.0_EN.pdf
3D Drawing CAD_E_EAM58B6-BF6XXR-xxxx-xxxxDP(Green)_V1.0.stp
Manual UM_E_EAC58(EAM58)-DP_V1.0_EN&CN.pdf
Configuration file Config_E_EAM90-DP_EAM58-DP_EAC58-DP_V1.0.zip
