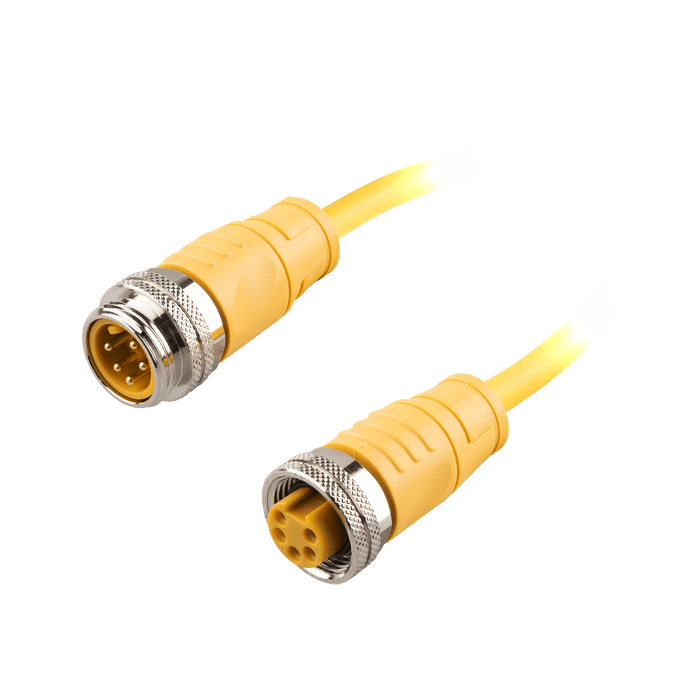

Power Cordset, Double-ended, 7/8" 5-pin Straight Female, to 7/8" 5-pin Straight Male, with PUR yellow jacket 16 AWG 5 million bending cycles cable, 7 m

115030A03M070

SKU 115030A03M070
by ELCO Industrial Automation

Power Cordset, Double-ended, 7/8" 5-pin Straight Female, to 7/8" 5-pin Straight Male, with PUR yellow jacket 16 AWG 5 million bending cycles cable, 7 m

$119.27 - $119.27
$119.27
$119.27 - $119.27
$119.27
Availability:
In stock

Power Cordset, Double-ended, 7/8" 5-pin Straight Female, to 7/8" 5-pin Straight Male, with PUR yellow jacket 16 AWG 5 million bending cycles cable, 7 m

Specifications

Coating contact material Gold-plated copper
Material contact TPU
IP rating IP67
Rated current 8 A
Nut/bolt material Nickel-plated copper
Wire insulation color WH,RD,GN,OG,BK
Drag chain 5 million bending cycles
Wire insulation material PVC
Cable length 7 m
Cable jacket color yellow

No additional information at this time.

Downloads

CE ELCO_7-8 Power connector _CE.pdf
UL ELCO_UL-7-8.pdf
Datasheet DS_C_115030AMXXX_V1.0_EN.pdf
3D Drawing ELCO_115030A0xMxxx.stp
