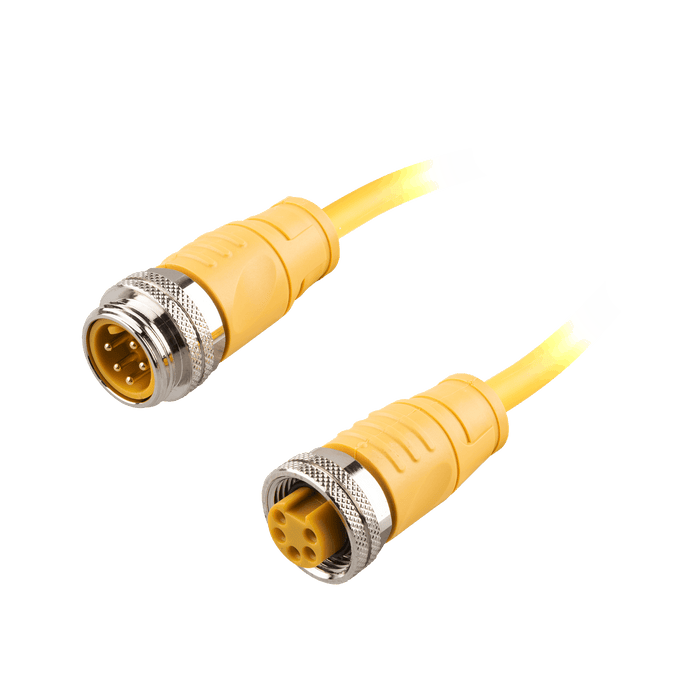

Power Cordset, Double-ended, 7/8" 5-pin Straight Female, to 7/8" 5-pin Straight Male, with PUR yellow jacket 16 AWG 5 million bending cycles cable, 2 m

115030A03M020

SKU 115030A03M020
by ELCO Industrial Automation

Power Cordset, Double-ended, 7/8" 5-pin Straight Female, to 7/8" 5-pin Straight Male, with PUR yellow jacket 16 AWG 5 million bending cycles cable, 2 m

$58.04 - $58.04
$58.04
$58.04 - $58.04
$58.04
Availability:
In stock

Power Cordset, Double-ended, 7/8" 5-pin Straight Female, to 7/8" 5-pin Straight Male, with PUR yellow jacket 16 AWG 5 million bending cycles cable, 2 m

Specifications

IP rating IP67
Rated current 8 A
Wire insulation color WH,RD,GN,OG,BK
Material contact TPU
Rated voltage 300 V
Cable length 2 m
Cable jacket color yellow
Cable jacket material PUR
Drag chain 5 million bending cycles
The head material TPU
Coating contact material Gold-plated copper

No additional information at this time.

Downloads

CE ELCO_7-8 Power connector _CE.pdf
UL ELCO_UL-7-8.pdf
Datasheet DS_C_115030AMXXX_V1.0_EN.pdf
3D Drawing ELCO_115030A0xMxxx.stp
