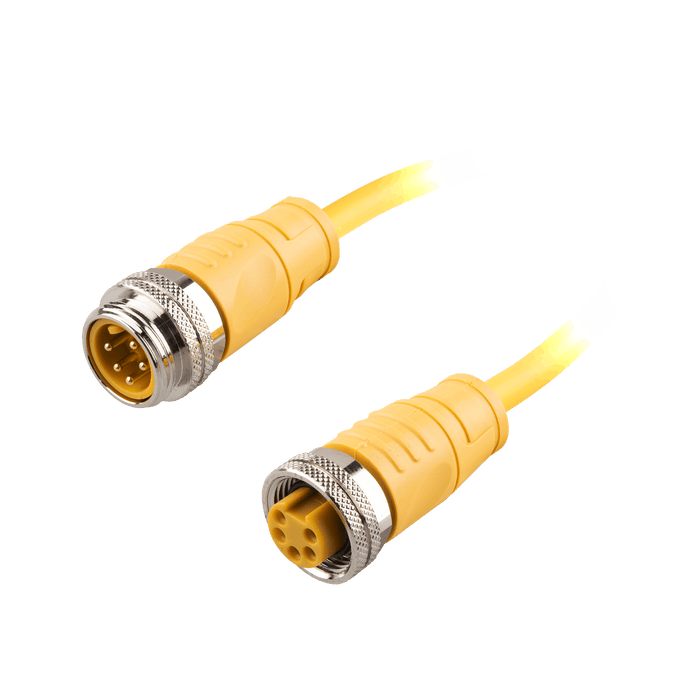

Power Cordset, Double-ended, 7/8" 5-pin Straight Female, to 7/8" 5-pin Straight Male, with PUR yellow jacket 16 AWG 5 million bending cycles cable, 1 m

115030A03M010

SKU 115030A03M010
by ELCO Industrial Automation

Power Cordset, Double-ended, 7/8" 5-pin Straight Female, to 7/8" 5-pin Straight Male, with PUR yellow jacket 16 AWG 5 million bending cycles cable, 1 m

$45.81 - $45.81
$45.81
$45.81 - $45.81
$45.81
Availability:
In stock

Power Cordset, Double-ended, 7/8" 5-pin Straight Female, to 7/8" 5-pin Straight Male, with PUR yellow jacket 16 AWG 5 million bending cycles cable, 1 m

Specifications

Rated voltage 300 V
Rated current 8 A
Wire insulation color WH,RD,GN,OG,BK
Material contact TPU
Drag chain 5 million bending cycles
IP rating IP67
Cable length 1 m
Wire insulation material PVC
Cable jacket color yellow
Cable jacket material PUR
The head material TPU
Coating contact material Go

No additional information at this time.

Downloads

CE ELCO_7-8 Power connector _CE.pdf
UL ELCO_UL-7-8.pdf
Datasheet DS_C_115030AMXXX_V1.0_EN.pdf
3D Drawing ELCO_115030A0xMxxx.stp
