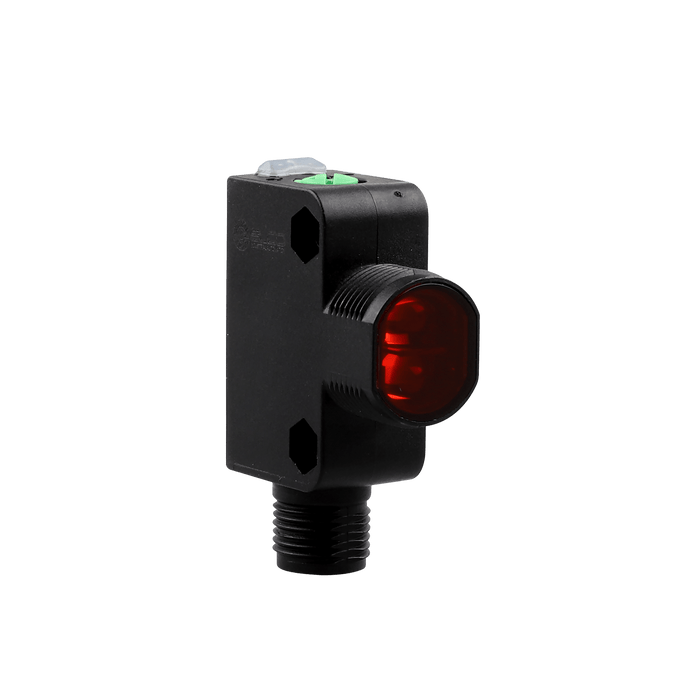

Photoelectric Sensor, OSQ18-Series, Retro-reflective, Red beam, Operating range 3.5 m, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

OSQ18-RVN6Q

SKU OSQ18-RVN6Q
by ELCO Industrial Automation

Photoelectric Sensor, OSQ18-Series, Retro-reflective, Red beam, Operating range 3.5 m, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

$37.01 - $37.01
$37.01
$37.01 - $37.01
$37.01
Availability:
In stock

Photoelectric Sensor, OSQ18-Series, Retro-reflective, Red beam, Operating range 3.5 m, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

Specifications

Spot size 50 mm @ 1 m
Output type NPN
Output status L.O + D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 200 mA
Anti-ambient light ≤ 5000 lux
Housing material PBT + ABS
Connection Connector
IP rating IP67
Detection method Retro-reflective
Sensing range 3.5 m

No additional information at this time.

Downloads

CE CE_SP_OSQ18_V1.0_EN.pdf
Datasheet ELCO_OSQ18_DataSheet_CN.pdf
Datasheet DS_SP_OSQ18_V1.0_EN.pdf
3D Drawing CAD_SP_OSQ18-AP-Q12_V1.0.stp
Manual UM_SP_OSQ18-R_V1.0_EN&CN.pdf
