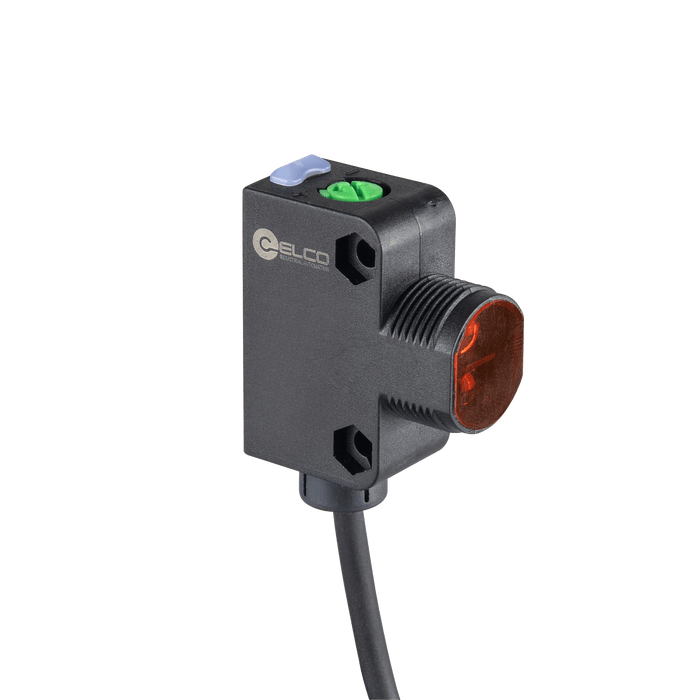

Photoelectric Sensor, OSQ18-Series, Polarized retro-reflective, Red beam, Operating range 3.5 m, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz IP67, Cable 2 m

OSQ18-RPVN6

SKU OSQ18-RPVN6
by ELCO Industrial Automation

Photoelectric Sensor, OSQ18-Series, Polarized retro-reflective, Red beam, Operating range 3.5 m, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz IP67, Cable 2 m

$37.93 - $37.93
$37.93
$37.93 - $37.93
$37.93
Availability:
In stock

Photoelectric Sensor, OSQ18-Series, Polarized retro-reflective, Red beam, Operating range 3.5 m, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz IP67, Cable 2 m

Specifications

Detection method Polarized Retro-reflective
Sensing range 3.5 m
Light source Red LED
Spot size 50 mm @ 1 m
Output type NPN
Output status L.O + D.O
Supply voltage 10 ... 30 V DC
Load current ≤ 200 mA
Switching frequency 800 Hz
Ambient temperature -25 … +55 ℃
Anti-ambient light ≤ 5000 lux

No additional information at this time.

Downloads

CE CE_SP_OSQ18_V1.0_EN.pdf
Datasheet ELCO_OSQ18_DataSheet_CN.pdf
Datasheet DS_SP_OSQ18_V1.0_EN.pdf
3D Drawing CAD_SP_OSQ18-AP_V1.0.stp
Manual UM_SP_OSQ18-RP_V1.0_EN&CN.pdf
