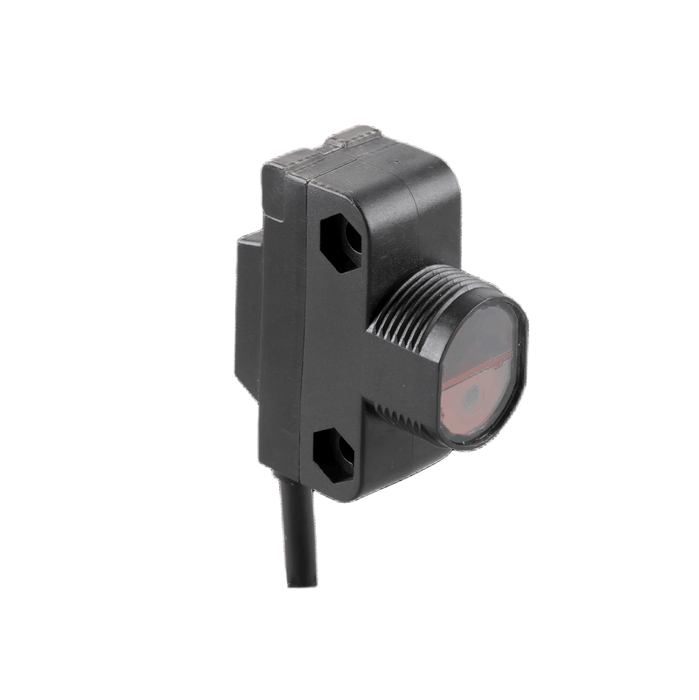

Photoelectric Sensor, OSQ18-Series, Polarized retro-reflective, Laser beam, Operating range 0.1 … 8 m, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

OSQ18-RPLVP6

SKU OSQ18-RPLVP6
by ELCO Industrial Automation

Photoelectric Sensor, OSQ18-Series, Polarized retro-reflective, Laser beam, Operating range 0.1 … 8 m, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

$72.21 - $72.21
$72.21
$72.21 - $72.21
$72.21
Availability:
In stock

Photoelectric Sensor, OSQ18-Series, Polarized retro-reflective, Laser beam, Operating range 0.1 … 8 m, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, Cable 2 m

Specifications

Load current ≤ 200 mA
Ambient temperature -25 … +55 ℃
Housing material PBT + ABS
Detection method Polarized Retro-reflective
Sensing range 0.1 … 8 m
Light source Red laser / Class 1
Spot size 3 mm @ 1 m
Output status L.O + D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
IP rating IP

No additional information at this time.

Downloads

CE CE_SP_OSQ18_V1.0_EN.pdf
Datasheet ELCO_OSQ18_DataSheet_CN.pdf
Datasheet DS_SP_OSQ18-RPL_V1.0_EN.pdf
3D Drawing CAD_SP_OSQ18-RPL_V1.0.stp
Manual UM_SP_OSQ18-RPL_V1.0_EN&CN.pdf
