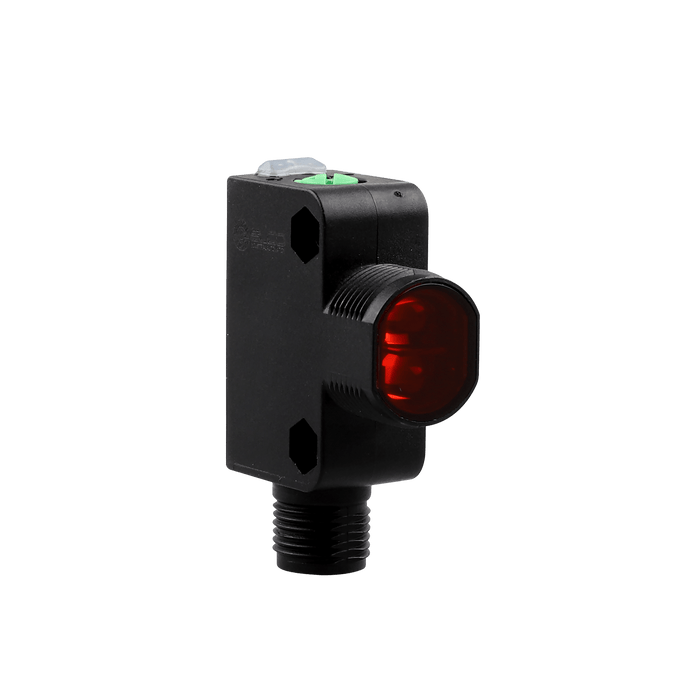

Photoelectric Sensor, OSQ18-Series, Diffused, Red beam, Operating range 400 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

OSQ18-K400VP6Q

SKU OSQ18-K400VP6Q
by ELCO Industrial Automation

Photoelectric Sensor, OSQ18-Series, Diffused, Red beam, Operating range 400 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

$37.01 - $37.01
$37.01
$37.01 - $37.01
$37.01
Availability:
In stock

Photoelectric Sensor, OSQ18-Series, Diffused, Red beam, Operating range 400 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

Specifications

IP rating IP67
Ambient temperature -25 … +55 ℃
Anti-ambient light ≤ 5000 lux
Connection Connector
Detection method Diffused
Sensing range 400 mm
Light source Red LED
Spot size 23 mm @ 400 mm
Output type PNP
Supply voltage 10 ... 30 V DC
Load current ≤ 200 mA
Output status L.O + D.O

No additional information at this time.

Downloads

CE CE_SP_OSQ18_V1.0_EN.pdf
Datasheet ELCO_OSQ18_DataSheet_CN.pdf
Datasheet DS_SP_OSQ18_V1.0_EN.pdf
3D Drawing CAD_SP_OSQ18-AP-Q12_V1.0.stp
Manual UM_SP_OSQ18-K600_V1.0_EN&CN.pdf
