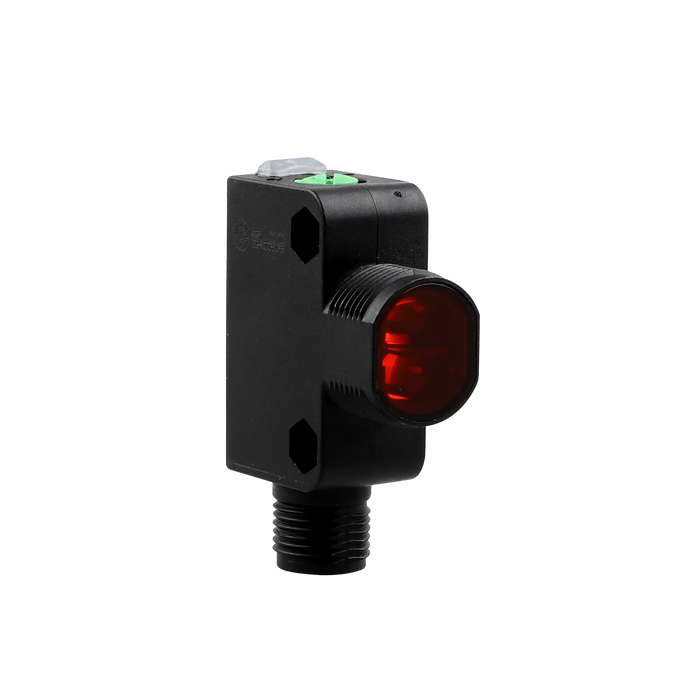

Photoelectric Sensor, OSQ18-Series, Opposed, Receiver, Infrared beam, Operating range 25 m, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

OSQ18-EVN6Q

SKU OSQ18-EVN6Q
by ELCO Industrial Automation

Photoelectric Sensor, OSQ18-Series, Opposed, Receiver, Infrared beam, Operating range 25 m, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

$27.65 - $27.65
$27.65
$27.65 - $27.65
$27.65
Availability:
In stock

Photoelectric Sensor, OSQ18-Series, Opposed, Receiver, Infrared beam, Operating range 25 m, NPN, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 800 Hz, IP67, M12 4-pin connector

Specifications

Detection method Opposed (Receiver)
Sensing range 25 m
Output type NPN
Output status L.O + D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 200 mA
Ambient temperature -25 … +55 ℃
Anti-ambient light ≤ 5000 lux
IP rating IP67
Connection type M12, 4-pin
Connection Conne

No additional information at this time.

Downloads

CE CE_SP_OSQ18_V1.0_EN.pdf
Datasheet ELCO_OSQ18_DataSheet_CN.pdf
Datasheet DS_SP_OSQ18_V1.0_EN.pdf
3D Drawing CAD_SP_OSQ18-AP-Q12_V1.0.stp
Manual UM_SP_OSQ18-SE_V1.0_EN&CN.pdf
