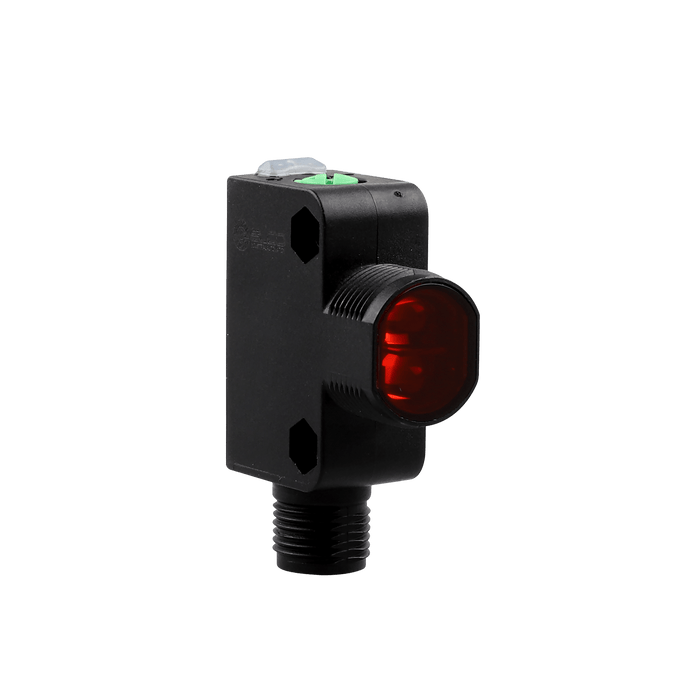

Photoelectric Sensor, OSQ18-Series, Diffused with fixed BGS, Red beam, Operating range 5...50 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M12 4-pin connector

OSQ18-AK50VP6Q

SKU OSQ18-AK50VP6Q
by ELCO Industrial Automation

Photoelectric Sensor, OSQ18-Series, Diffused with fixed BGS, Red beam, Operating range 5...50 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M12 4-pin connector

$37.98 - $37.98
$37.98
$37.98 - $37.98
$37.98
Availability:
In stock

Photoelectric Sensor, OSQ18-Series, Diffused with fixed BGS, Red beam, Operating range 5...50 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M12 4-pin connector

Specifications

Light source Red LED
Spot size 5 mm @ 50 mm
Detection method BGS Diffused
Sensing range 5 … 50 mm
Output type PNP
Output status L.O + D.O
Switching frequency 400 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 200 mA
Anti-ambient light ≤ 10000 lux
IP rating IP67
Special characteristics Fixed d

No additional information at this time.

Downloads

CE CE_SP_OSQ18_V1.0_EN.pdf
Datasheet ELCO_OSQ18_DataSheet_CN.pdf
Datasheet DS_SP_OSQ18_V1.0_EN.pdf
3D Drawing CAD_SP_OSQ18-AP-Q12_V1.0.stp
Manual UM_SP_OSQ18-AK100_V1.0_EN&CN.pdf
