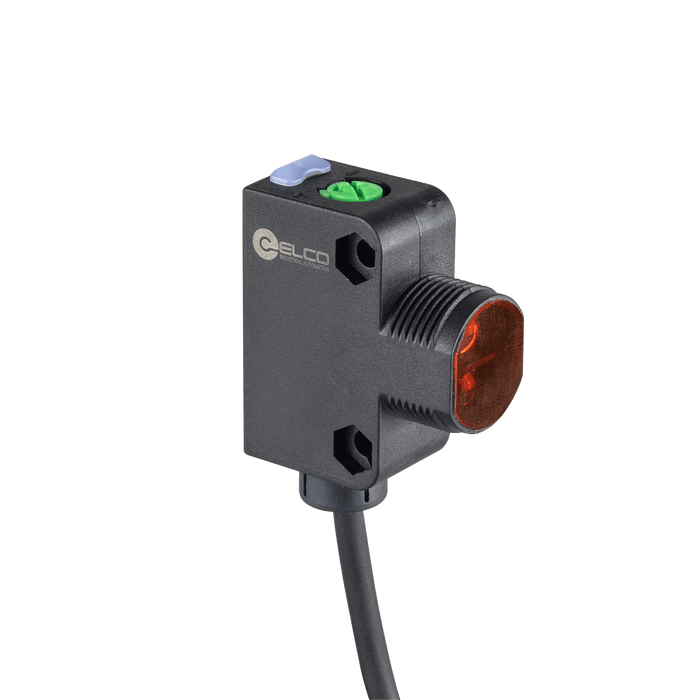

Photoelectric Sensor, OSQ18-Series, Diffused with fixed BGS, Red beam, Operating range 5...50 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, Cable 2 m

OSQ18-AK50VP6

SKU OSQ18-AK50VP6
by ELCO Industrial Automation

Photoelectric Sensor, OSQ18-Series, Diffused with fixed BGS, Red beam, Operating range 5...50 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, Cable 2 m

$38.91 - $38.91
$38.91
$38.91 - $38.91
$38.91
Availability:
In stock

Photoelectric Sensor, OSQ18-Series, Diffused with fixed BGS, Red beam, Operating range 5...50 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, Cable 2 m

Specifications

Light source Red LED
Spot size 5 mm @ 50 mm
Output type PNP
Output status L.O + D.O
Switching frequency 400 Hz
Supply voltage 10 ... 30 V DC
Ambient temperature -25 … +55 ℃
Detection method BGS Diffused
Sensing range 5 … 50 mm
Connection type 2 m, TPU
IP rating IP67
Special characteristics Fix

No additional information at this time.

Downloads

CE CE_SP_OSQ18_V1.0_EN.pdf
Datasheet ELCO_OSQ18_DataSheet_CN.pdf
Datasheet DS_SP_OSQ18_V1.0_EN.pdf
3D Drawing CAD_SP_OSQ18-AP_V1.0.stp
Manual UM_SP_OSQ18-AK100_V1.0_EN&CN.pdf
