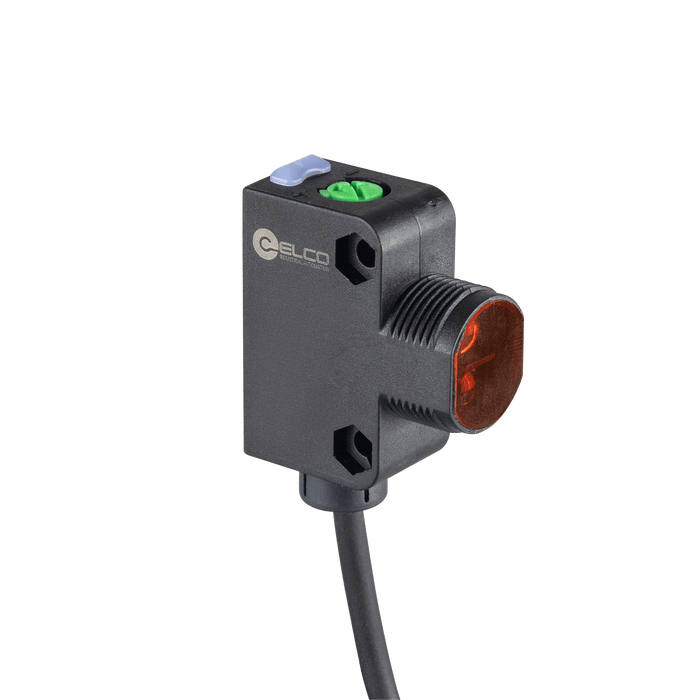

Photoelectric Sensor, OSQ18-Series, Diffused with fixed BGS, Red beam, Operating range 10...150 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, Cable 2 m

OSQ18-AK150VP6

SKU OSQ18-AK150VP6
by ELCO Industrial Automation

Photoelectric Sensor, OSQ18-Series, Diffused with fixed BGS, Red beam, Operating range 10...150 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, Cable 2 m

$43.68 - $43.68
$43.68
$43.68 - $43.68
$43.68
Availability:
In stock

Photoelectric Sensor, OSQ18-Series, Diffused with fixed BGS, Red beam, Operating range 10...150 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, Cable 2 m

Specifications

Detection method BGS Diffused
Sensing range 10 … 150 mm
Light source Red LED
Spot size 9 mm @ 150 mm
Output type PNP
Output status L.O + D.O
Switching frequency 400 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 200 mA
Housing material PBT + ABS
Connection Cable
IP rating IP67

No additional information at this time.

Downloads

CE CE_SP_OSQ18_V1.0_EN.pdf
Datasheet ELCO_OSQ18_DataSheet_CN.pdf
Datasheet DS_SP_OSQ18_V1.0_EN.pdf
3D Drawing CAD_SP_OSQ18-AP_V1.0.stp
Manual UM_SP_OSQ18-AK200_V1.0_EN&CN.pdf
