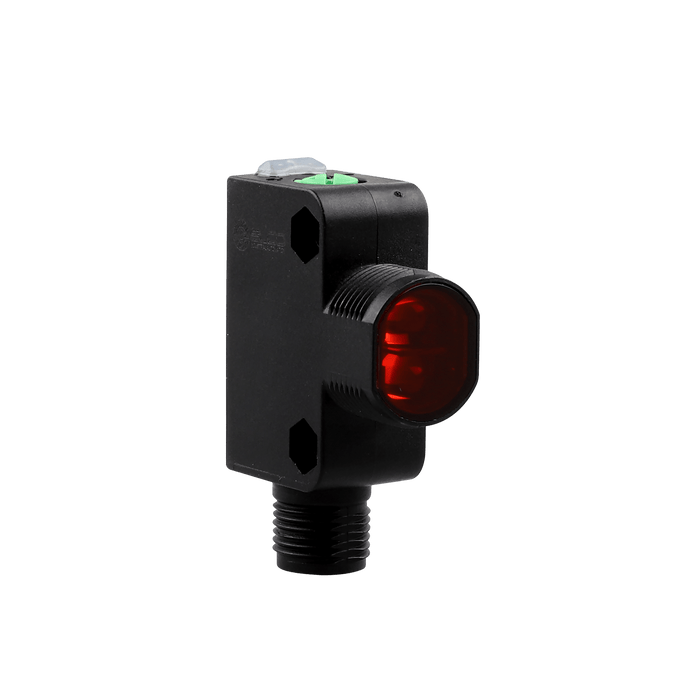

Photoelectric Sensor, OSQ18-Series, Diffused with fixed BGS, Red beam, Operating range 8...100 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M12 4-pin connector

OSQ18-AK100VP6Q

SKU OSQ18-AK100VP6Q
by ELCO Industrial Automation

Photoelectric Sensor, OSQ18-Series, Diffused with fixed BGS, Red beam, Operating range 8...100 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M12 4-pin connector

$42.61 - $42.61
$42.61
$42.61 - $42.61
$42.61
Availability:
In stock

Photoelectric Sensor, OSQ18-Series, Diffused with fixed BGS, Red beam, Operating range 8...100 mm, PNP, L.O + D.O, 10…30V DC, -25…55°C, Switching frequency 400 Hz, IP67, M12 4-pin connector

Specifications

Detection method BGS Diffused
Sensing range 8 … 100 mm
Light source Red LED
Spot size 7 mm @ 100 mm
Output type PNP
Output status L.O + D.O
Switching frequency 400 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 200 mA
Ambient temperature -25 … +55 ℃
Anti-ambient light ≤ 10000 lux

No additional information at this time.

Downloads

CE CE_SP_OSQ18_V1.0_EN.pdf
Datasheet ELCO_OSQ18_DataSheet_CN.pdf
Datasheet DS_SP_OSQ18_V1.0_EN.pdf
3D Drawing CAD_SP_OSQ18-AP-Q12_V1.0.stp
Manual UM_SP_OSQ18-AK100_V1.0_EN&CN.pdf
