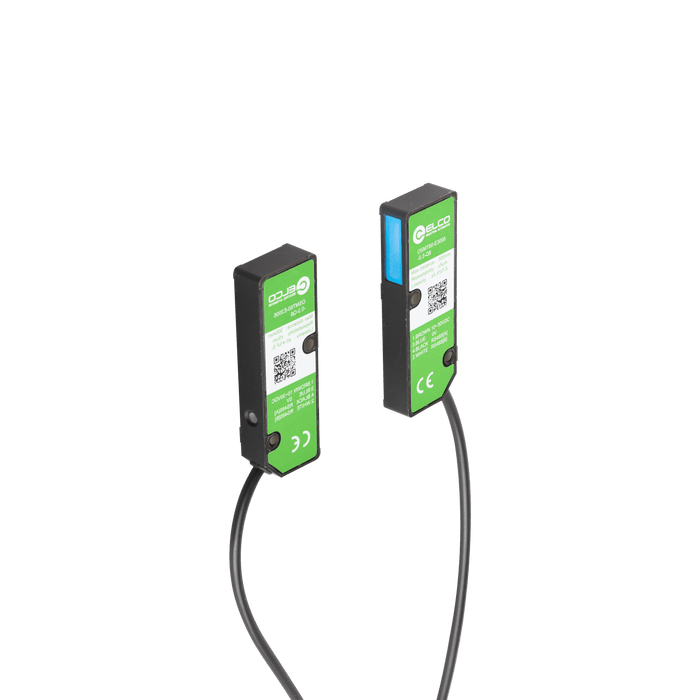

Distance Sensor, OSMT60-Series, Laser Array Sensor Emitter + Receiver, Red Laser (Class 1), Operating range 300 mm, Measuring range 10 mm, use with controller OSC1, -10…50°C, IP50, 0.3 m Cable + M8 4-pin connector

OSMT60-T300

SKU OSMT60-T300
by ELCO Industrial Automation

Distance Sensor, OSMT60-Series, Laser Array Sensor Emitter + Receiver, Red Laser (Class 1), Operating range 300 mm, Measuring range 10 mm, use with controller OSC1, -10…50°C, IP50, 0.3 m Cable + M8 4-pin connector

$661.89 - $661.89
$661.89
$661.89 - $661.89
$661.89
Availability:
In stock

Distance Sensor, OSMT60-Series, Laser Array Sensor Emitter + Receiver, Red Laser (Class 1), Operating range 300 mm, Measuring range 10 mm, use with controller OSC1, -10…50°C, IP50, 0.3 m Cable + M8 4-pin connector

Specifications

Connection M8 Pigtail
IP rating IP67
Connection type 0.3 mm Cable + M8, 4-pin
Supply voltage 10 … 24 V DC
Ambient temperature -10 … +50 ℃
Light source Red laser / Class 1
Spot size 3 × 14 mm
Response time 500 us
Anti-ambient light ≤ 5000 lux
Housing Material Aluminum alloy
Load current ≤ 80 mA

No additional information at this time.

Downloads

CE CE_SP_OSMT60_V1.0_EN.pdf
Datasheet DS_SP_OSMT60_V1.0_EN.pdf
3D Drawing CAD_SP_OSMT60_V1.0.stp
Manual UM_SP_OSMT60_V1.0_EN&CN.pdf
