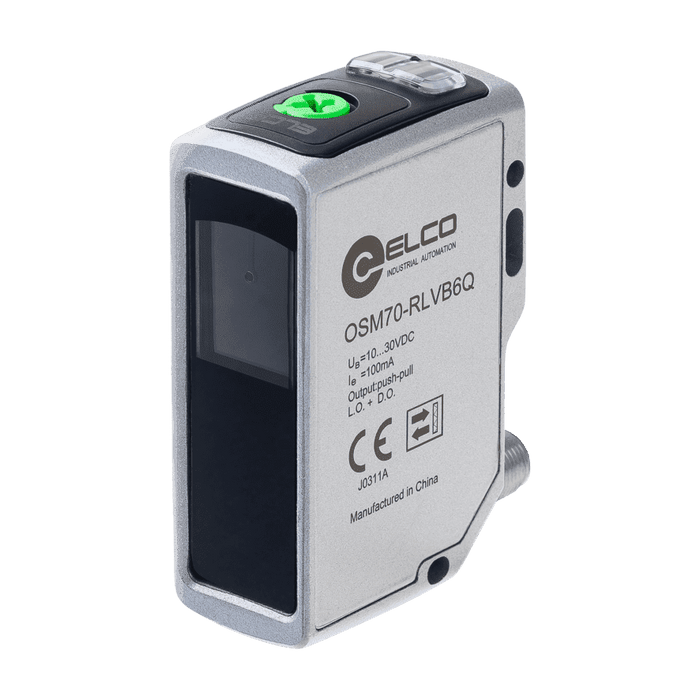

Photoelectric Sensor, OSM70-Series, Polarized retro-reflective, Laser beam, Operating range 25 m, Push-Pull, NO / NC, 10…30V DC, -25…55 °C, Switching frequency 800 Hz, IP67, M12 4-pin connector

OSM70-RPLVB6Q

SKU OSM70-RPLVB6Q
by ELCO Industrial Automation

Photoelectric Sensor, OSM70-Series, Polarized retro-reflective, Laser beam, Operating range 25 m, Push-Pull, NO / NC, 10…30V DC, -25…55 °C, Switching frequency 800 Hz, IP67, M12 4-pin connector

$117.70 - $117.70
$117.70
$117.70 - $117.70
$117.70
Availability:
In stock

Photoelectric Sensor, OSM70-Series, Polarized retro-reflective, Laser beam, Operating range 25 m, Push-Pull, NO / NC, 10…30V DC, -25…55 °C, Switching frequency 800 Hz, IP67, M12 4-pin connector

Specifications

Detection method Polarized Retro-reflective
Sensing range 25 m
Light source Red laser / Class 2
Spot size 15 mm @ 20 m
Output type Push-pull
Output status L.O + D.O
Switching frequency 800 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 450 mA
Ambient temperature -25 … +55 ℃

No additional information at this time.

Downloads

CE ELCO_OSM70_CE.pdf
Datasheet ELCO_OSM70_DataSheet_EN.pdf
Datasheet ELCO_OSM70_DataSheet_CN.pdf
3D Drawing ELCO_OSM70-RPLVB6Q.stp
Manual ELCO_OSM70-RPLVB6Q_Manual.pdf
