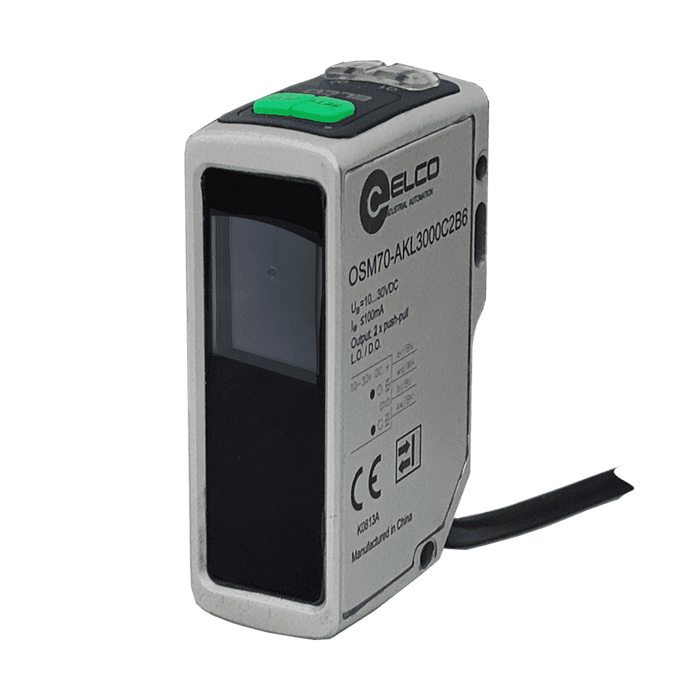

Photoelectric Sensor, OSM70-Series, Diffused with BGS, Infrared laser + Laser indication, Operating range 3 m, Push-Pull, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 20…50 Hz, IP67, Cable 2 m

OSM70-AKL3000VB6

SKU OSM70-AKL3000VB6
by ELCO Industrial Automation

Photoelectric Sensor, OSM70-Series, Diffused with BGS, Infrared laser + Laser indication, Operating range 3 m, Push-Pull, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 20…50 Hz, IP67, Cable 2 m

$138.96 - $138.96
$138.96
$138.96 - $138.96
$138.96
Availability:
In stock

Photoelectric Sensor, OSM70-Series, Diffused with BGS, Infrared laser + Laser indication, Operating range 3 m, Push-Pull, L.O / D.O, 10…30V DC, -25…55°C, Switching frequency 20…50 Hz, IP67, Cable 2 m

Specifications

Connection type 2 m, PVC
Detection method TOF BGS Diffused
Sensing range 3 m
Light source Infrared laser + laser indication / Class 1
Spot size 10 × 7 cm @ 3 m
Output type Push-pull
Output status L.O + D.O
Switching frequency 20 ... 50 Hz
Supply voltage 10 ... 30 V DC
Load current ≤ 450 mA

No additional information at this time.

Downloads

CE ELCO_OSM70_CE.pdf
Datasheet ELCO_OSM70_DataSheet_EN.pdf
Datasheet ELCO_OSM70_DataSheet_CN.pdf
3D Drawing ELCO_OSM70-AKL3000VB6.stp
Manual ELCO_OSM70-AKL3000VB6_Manual.pdf
