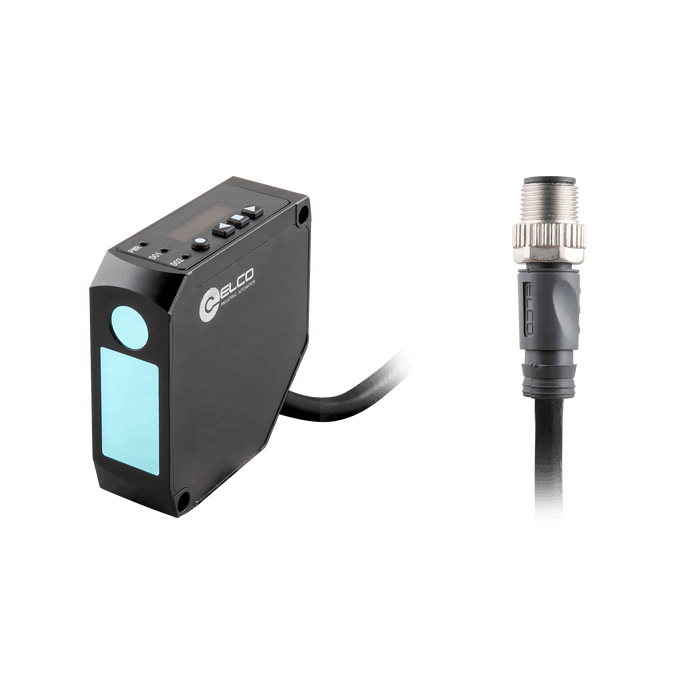

Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 85 mm +/- 20 mm, Resolution 1 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, 0.3 m Cable + M12 8-pin connector

OSM61-KL85C2BLIU6/485-0.3-Q12.8

SKU OSM61-KL85C2BLIU6/485-0.3-Q12.8
by ELCO Industrial Automation

Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 85 mm +/- 20 mm, Resolution 1 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, 0.3 m Cable + M12 8-pin connector

$674.69 - $674.69
$674.69
$674.69 - $674.69
$674.69
Availability:
In stock

Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 85 mm +/- 20 mm, Resolution 1 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, 0.3 m Cable + M12 8-pin connector

Specifications

Repeatability 5 um @ 65 ... 105 mm
Output type NPN / PNP / Push-pull & 4 ... 20 mA / 0 ... 10 V & RS-485
Output status L.O / D.O
Ambient temperature -10 … +50 ℃
Anti-ambient light ≤ 5000 lux
Housing Material Aluminum alloy
Connection M12 Pigtail
IP rating IP67
Connection type 0.3 mm Cable + M12, 8-p

No additional information at this time.

Downloads

Datasheet DS_SP_OSM61_V1.0_EN.pdf
3D Drawing CAD_SP_OSM61-0.3-Q12.8_V1.0.stp
Manual UM_SP_OSM61_V1.0_EN&CN.pdf
