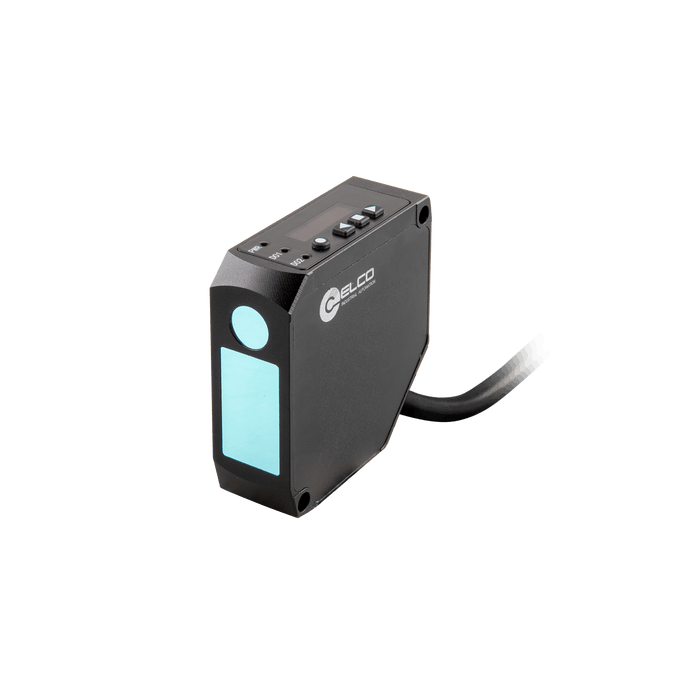

Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 30 mm +/- 4 mm, Resolution 1 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

OSM61-KL30C2BLIU6/485

SKU OSM61-KL30C2BLIU6/485
by ELCO Industrial Automation

Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 30 mm +/- 4 mm, Resolution 1 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

$661.68 - $661.68
$661.68
$661.68 - $661.68
$661.68
Availability:
In stock

Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 30 mm +/- 4 mm, Resolution 1 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

Specifications

Detection method CMOS ranging
Connection Cable
Connection type 2 m, PVC
Repeatability 1 um @ 26 ... 34 mm
Response time 200 us / 500 us / 1 ms / 2 ms
Load current ≤ 150 mA
Ambient temperature -10 … +50 ℃
IP rating IP67
Spot size 0.8 mm @ 30 mm
Anti-ambient light ≤ 5000 lux
Light source Red laser

No additional information at this time.

Downloads

Datasheet DS_SP_OSM61_V1.0_EN.pdf
3D Drawing CAD_SP_OSM61_V1.0.stp
Manual UM_SP_OSM61_V1.0_EN&CN.pdf
