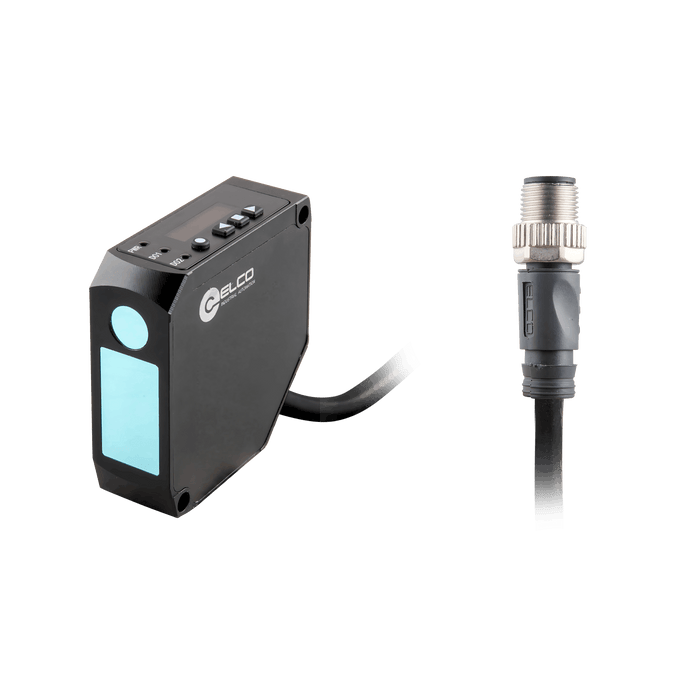

Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 250 mm +/- 150 mm, Resolution 10 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, 0.3 m Cable + M12 8-pin connector

OSM61-KL250C2BLIU6/485-0.3-Q12.8

SKU OSM61-KL250C2BLIU6/485-0.3-Q12.8
by ELCO Industrial Automation

Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 250 mm +/- 150 mm, Resolution 10 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, 0.3 m Cable + M12 8-pin connector

$674.69 - $674.69
$674.69
$674.69 - $674.69
$674.69
Availability:
In stock

Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 250 mm +/- 150 mm, Resolution 10 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, 0.3 m Cable + M12 8-pin connector

Specifications

Sensing range 250 ± 150 mm
Light source Red laser / Class 2
Spot size 1.3 mm @ 250 mm
Response time 200 us / 500 us / 1 ms / 2 ms
Supply voltage 10 ... 30 V DC
Anti-ambient light ≤ 5000 lux
Housing Material Aluminum alloy
Connection M12 Pigtail
Connection type 0.3 mm Cable + M12, 8-pin
IP rating I

No additional information at this time.

Downloads

Datasheet DS_SP_OSM61_V1.0_EN.pdf
3D Drawing CAD_SP_OSM61-0.3-Q12.8_V1.0.stp
Manual UM_SP_OSM61_V1.0_EN&CN.pdf
