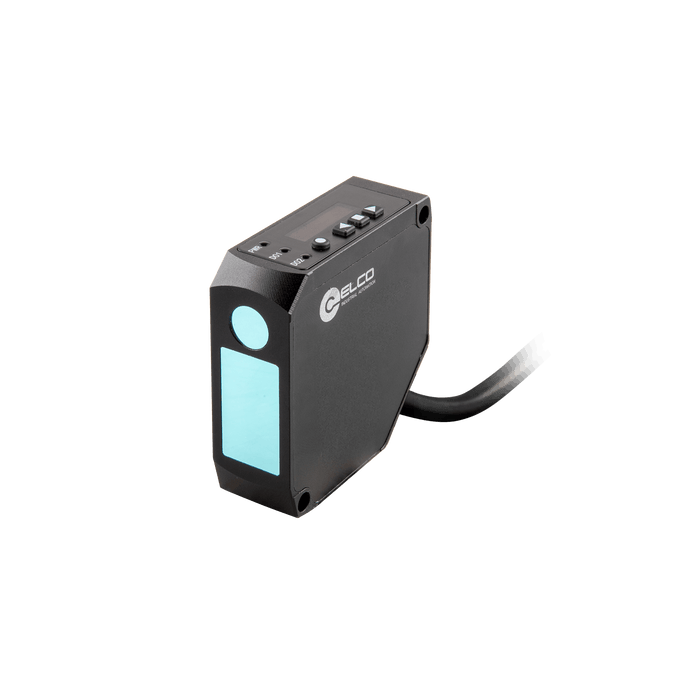

Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 250 mm +/- 150 mm, Resolution 10 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

OSM61-KL250C2BLIU6/485

SKU OSM61-KL250C2BLIU6/485
by ELCO Industrial Automation

Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 250 mm +/- 150 mm, Resolution 10 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

$661.69 - $661.69
$661.69
$661.69 - $661.69
$661.69
Availability:
In stock

Distance Sensor, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 250 mm +/- 150 mm, Resolution 10 μm, 2×NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

Specifications

Connection Cable
IP rating IP67
Connection type 2 m, PVC
Response time 200 us / 500 us / 1 ms / 2 ms
Ambient temperature -10 … +50 ℃
Repeatability 20 um @100 ... 400 mm
Output type NPN / PNP / Push-pull & 4 ... 20 mA / 0 ... 10 V & RS-485
Spot size 1.3 mm @ 250 mm
Anti-ambient light ≤ 5000 lux

No additional information at this time.

Downloads

Datasheet DS_SP_OSM61_V1.0_EN.pdf
3D Drawing CAD_SP_OSM61_V1.0.stp
Manual UM_SP_OSM61_V1.0_EN&CN.pdf
