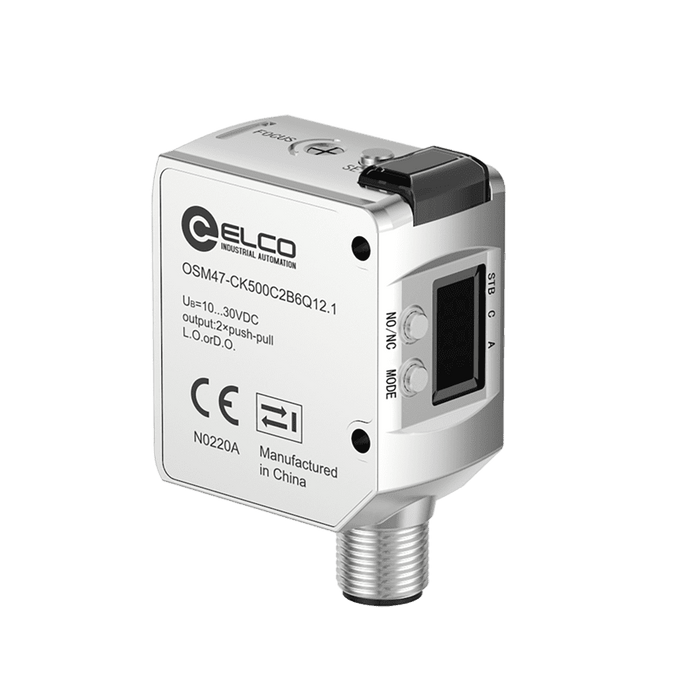

Color/Digital Mark Sensor, OSM47-Series, Color sensor, White LED, Detection range 30…500 mm, 2×NPN/PNP, 10…30V DC, -20…50°C, IP67, M12 5-pin connector

OSM47-CK500C2B6Q12.1

SKU OSM47-CK500C2B6Q12.1
by ELCO Industrial Automation

Color/Digital Mark Sensor, OSM47-Series, Color sensor, White LED, Detection range 30…500 mm, 2×NPN/PNP, 10…30V DC, -20…50°C, IP67, M12 5-pin connector

$486.34 - $486.34
$486.34
$486.34 - $486.34
$486.34
Availability:
In stock

Color/Digital Mark Sensor, OSM47-Series, Color sensor, White LED, Detection range 30…500 mm, 2×NPN/PNP, 10…30V DC, -20…50°C, IP67, M12 5-pin connector

Specifications

Anti-ambient light ≤ 10000 lux
Housing Material Die-cast zinc
Output type 2 × NPN / PNP
Connection type M12, 5-pin
Response time 200 us / 1 ms / 10 ms / 500 ms
Light source White LED
Load current ≤ 150 mA
Ambient temperature -20 … +50 ℃
IP rating IP67
Connection Connector
Supply voltage 10 … 30

No additional information at this time.

Downloads

CE ELCO_OSM47_CE.pdf
Datasheet ELCO_OSM47_DataSheet_EN.pdf
Datasheet ELCO_OSM47_DataSheet_CN.pdf
3D Drawing ELCO_OSM47-CK500C2B6Q12.1.stp
Manual ELCO_OSM47-CK500C2B6Q12.1_Manual.pdf
