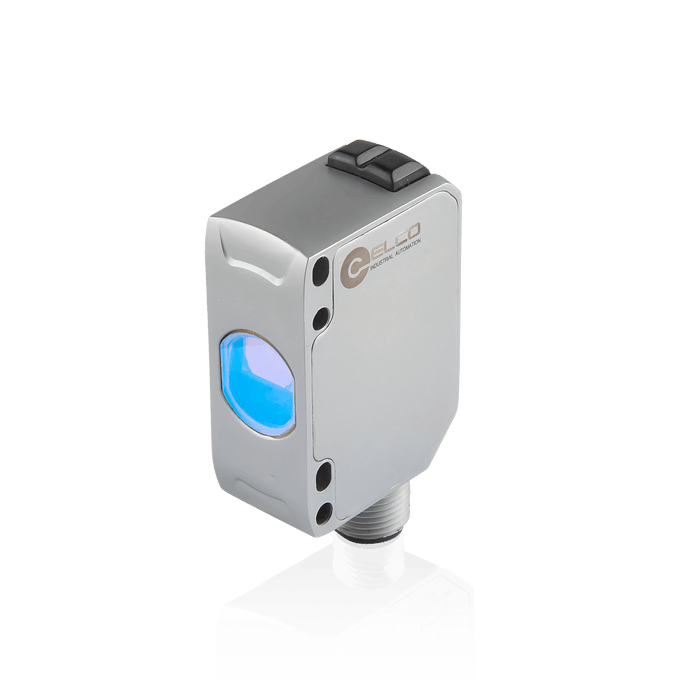

Distance Sensor, OSM45-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 35…510 mm, Resolution 0.1 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

OSM45-KL510CB6Q12.1/485

SKU OSM45-KL510CB6Q12.1/485
by ELCO Industrial Automation

Distance Sensor, OSM45-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 35…510 mm, Resolution 0.1 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

$231.59 - $231.59
$231.59
$231.59 - $231.59
$231.59
Availability:
In stock

Distance Sensor, OSM45-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 35…510 mm, Resolution 0.1 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

Specifications

Connection Connector
IP rating IP67
Connection type M12, 5-pin
Detection method CMOS ranging
Sensing range 35 … 510 mm
Light source Red laser / Class 1
Resolution 0.1 mm
Repeatability 1 mm @ 35 … 100 mm & 3 mm @ 100 … 310 mm & 5 mm @ 300 … 510 mm
Output type NPN / PNP & RS-485
Output status L.O /

No additional information at this time.

Downloads

Datasheet DS_SP_OSM45_V1.0_EN.pdf
3D Drawing CAD_SP_OSM45-Q12.1_V1.0.stp
Manual UM_SP_OSM45-485_V1.0_EN&CN.pdf
