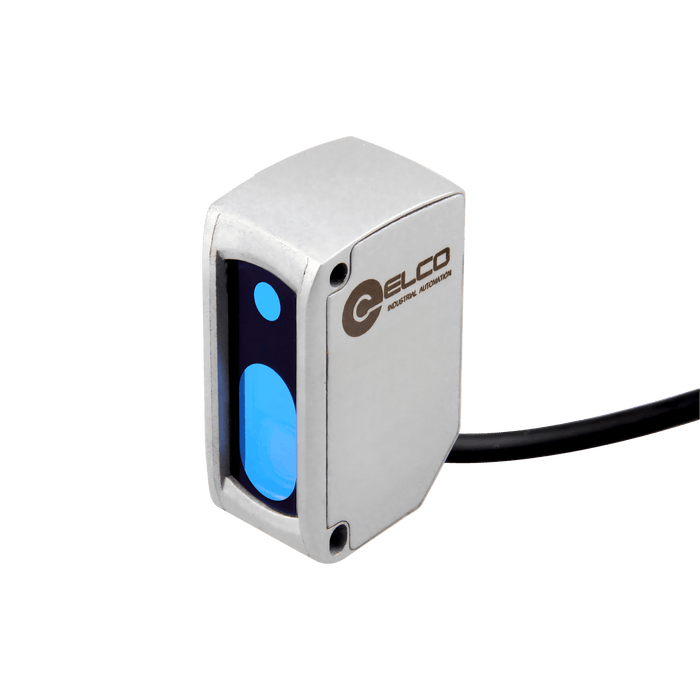

Distance Sensor, OSM42-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…1200 mm, Resolution 1 mm, 2 x Push-Pull, Teach button, 10…30V DC, -10…50°C, IP67, 2 m Cable

OSM42-KL1200C2B6

SKU OSM42-KL1200C2B6
by ELCO Industrial Automation

Distance Sensor, OSM42-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…1200 mm, Resolution 1 mm, 2 x Push-Pull, Teach button, 10…30V DC, -10…50°C, IP67, 2 m Cable

$208.43 - $208.43
$208.43
$208.43 - $208.43
$208.43
Availability:
In stock

Distance Sensor, OSM42-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…1200 mm, Resolution 1 mm, 2 x Push-Pull, Teach button, 10…30V DC, -10…50°C, IP67, 2 m Cable

Specifications

Connection Cable
IP rating IP67
Connection type 2 m, PVC
Ambient temperature -10 … +50 ℃
Housing Material Die-cast zinc
Response time 30 HZ
Repeatability 2 mm @ 600 mm & 5 mm @ 800 mm & 10 mm @ 1200 mm
Spot size 1.5mm @ 1200 mm
Resolution 1 mm
Anti-ambient light ≤ 5000 lux
Light source Red laser

No additional information at this time.

Downloads

CE CE_SP_OSM42_V1.0_EN.pdf
UL UL_SP_OSM42_V1.0_EN.pdf
Datasheet DS_SP_OSM42-CMOS_V1.0_EN.pdf
3D Drawing CAD_SP_OSM42-CMOS_V1.0.stp
Manual UM_SP_OSM42-CMOS_V1.0_EN&CN.pdf
