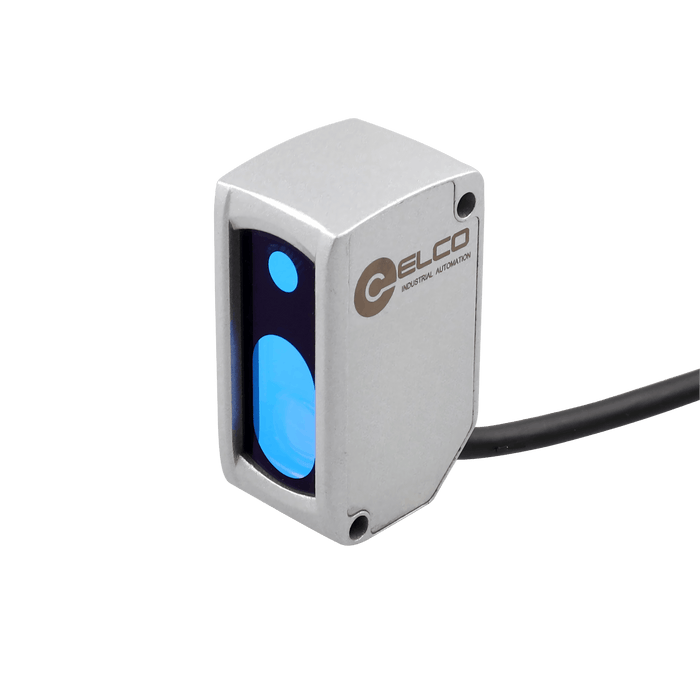

Distance Sensor, OSM41-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 50 mm +/- 15 mm, Resolution 0.01 mm, 2 x Push-Pull, 10…30V DC, -10…50°C, IP67, Cable 2 m

OSM41-KL50C2B6

SKU OSM41-KL50C2B6
by ELCO Industrial Automation

Distance Sensor, OSM41-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 50 mm +/- 15 mm, Resolution 0.01 mm, 2 x Push-Pull, 10…30V DC, -10…50°C, IP67, Cable 2 m

$254.75 - $254.75
$254.75
$254.75 - $254.75
$254.75
Availability:
In stock

Distance Sensor, OSM41-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 50 mm +/- 15 mm, Resolution 0.01 mm, 2 x Push-Pull, 10…30V DC, -10…50°C, IP67, Cable 2 m

Specifications

Spot size 0.5 mm @ 50 mm
Resolution 0.01 mm
Light source Red laser / Class 2
Repeatability 0.03 mm @ 50 mm
Output type 2 × NPN / PNP
Detection method CMOS ranging
Output status L.O / D.O
Sensing range 50 ± 15 mm
Response time 1.5 ms / 5 ms / 15 ms
Connection Cable
IP rating IP67

No additional information at this time.

Downloads

CE CE_SP_OSM41_V1.0_EN.pdf
UL UL_SP_OSM41_V1.0_EN.pdf
Datasheet DS_SP_OSM41-CMOS_V1.0_EN.pdf
3D Drawing ELCO_OSM41-KL50C2B6.stp
Manual UM_SP_OSM41-C2B6_V1.0_EN&CN.pdf
