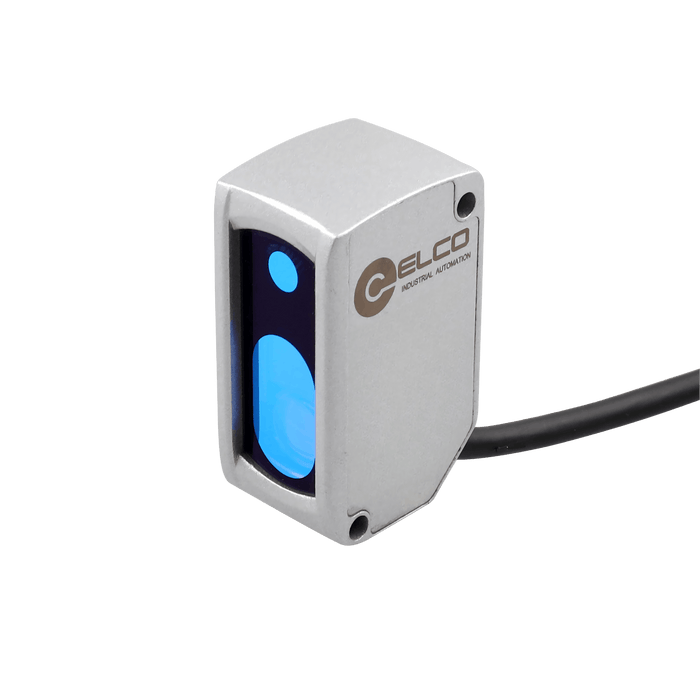

Distance Sensor, OSM41-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 400 mm +/- 200 mm, Resolution 0.1 mm, NPN or PNP, Analog 4…20 mA or 0…5V DC or 0…10V DC, 10…30V DC, -10…50°C, IP67, Cable 2 m

OSM41-KL400CBLIU6

SKU OSM41-KL400CBLIU6
by ELCO Industrial Automation

Distance Sensor, OSM41-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 400 mm +/- 200 mm, Resolution 0.1 mm, NPN or PNP, Analog 4…20 mA or 0…5V DC or 0…10V DC, 10…30V DC, -10…50°C, IP67, Cable 2 m

$254.75 - $254.75
$254.75
$254.75 - $254.75
$254.75
Availability:
In stock

Distance Sensor, OSM41-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 400 mm +/- 200 mm, Resolution 0.1 mm, NPN or PNP, Analog 4…20 mA or 0…5V DC or 0…10V DC, 10…30V DC, -10…50°C, IP67, Cable 2 m

Specifications

Connection Cable
IP rating IP67
Connection type 2 m, PVC
Anti-ambient light ≤ 3000 lux
Ambient temperature -10 … +50 ℃
Spot size 1 mm @ 400 mm
Response time 1.5 ms / 5 ms / 15 ms
Repeatability 0.3 mm @ 200 ... 400 mm & 0.8 mm @ 400 ... 600 mm
Light source Red laser / Class 2
Resolution 0.1 mm

No additional information at this time.

Downloads

CE CE_SP_OSM41_V1.0_EN.pdf
UL UL_SP_OSM41_V1.0_EN.pdf
Datasheet DS_SP_OSM41-CMOS_V1.0_EN.pdf
3D Drawing CAD_SP_OSM41-CMOS_V1.0.stp
Manual UM_SP_OSM41-LIU_V1.0_EN&CN.pdf
