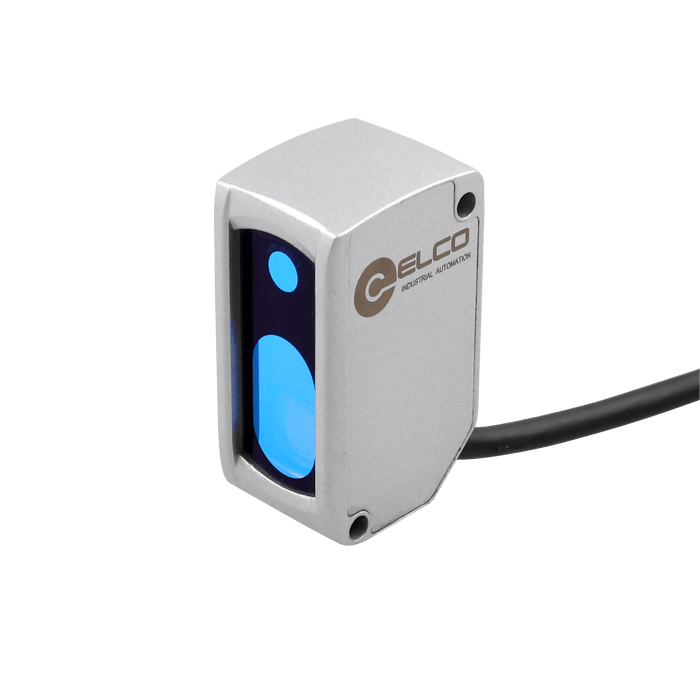

Distance Sensor, OSM41-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 30 mm +/- 5 mm, Resolution 0.001 mm, 2 x Push-Pull, 10…30V DC, -10…50°C, IP67, Cable 2 m

OSM41-KL30C2B6

SKU OSM41-KL30C2B6
by ELCO Industrial Automation

Distance Sensor, OSM41-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 30 mm +/- 5 mm, Resolution 0.001 mm, 2 x Push-Pull, 10…30V DC, -10…50°C, IP67, Cable 2 m

$254.75 - $254.75
$254.75
$254.75 - $254.75
$254.75
Availability:
In stock

Distance Sensor, OSM41-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 30 mm +/- 5 mm, Resolution 0.001 mm, 2 x Push-Pull, 10…30V DC, -10…50°C, IP67, Cable 2 m

Specifications

Connection Cable
IP rating IP67
Connection type 2 m, PVC
Response time 1.5 ms / 5 ms / 15 ms
Spot size 0.2 mm @ 30 mm
Sensing range 30 ± 5 mm
Resolution 0.001 mm
Housing Material Die-cast zinc
Light source Red laser / Class 2
Anti-ambient light ≤ 3000 lux
Ambient temperature -10 … +50 ℃

No additional information at this time.

Downloads

CE CE_SP_OSM41_V1.0_EN.pdf
UL UL_SP_OSM41_V1.0_EN.pdf
Datasheet DS_SP_OSM41-CMOS_V1.0_EN.pdf
3D Drawing CAD_SP_OSM41-CMOS_V1.0.stp
Manual UM_SP_OSM41-C2B6_V1.0_EN&CN.pdf
