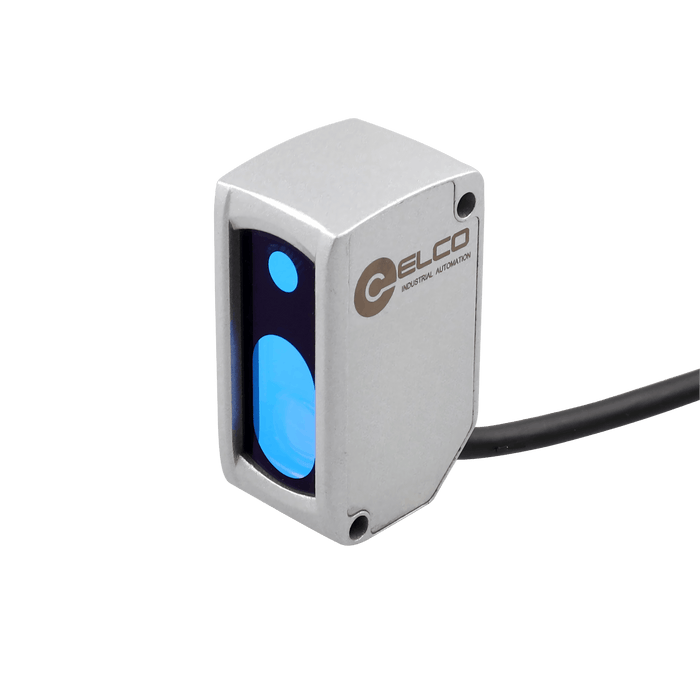

Distance Sensor, OSM41-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…1500 mm, Resolution 1 mm, NPN or PNP, Analog 4…20 mA or 0…5V DC or 0…10V DC, 10…30V DC, -10…50°C, IP67, Cable 2 m

OSM41-KL1500CBLIU6

SKU OSM41-KL1500CBLIU6
by ELCO Industrial Automation

Distance Sensor, OSM41-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…1500 mm, Resolution 1 mm, NPN or PNP, Analog 4…20 mA or 0…5V DC or 0…10V DC, 10…30V DC, -10…50°C, IP67, Cable 2 m

$254.75 - $254.75
$254.75
$254.75 - $254.75
$254.75
Availability:
In stock

Distance Sensor, OSM41-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…1500 mm, Resolution 1 mm, NPN or PNP, Analog 4…20 mA or 0…5V DC or 0…10V DC, 10…30V DC, -10…50°C, IP67, Cable 2 m

Specifications

Connection Cable
IP rating IP67
Connection type 2 m, PVC
Anti-ambient light ≤ 3000 lux
Spot size 2 mm @ 600 mm
Response time 1.5 ms / 5 ms / 15 ms
Ambient temperature -10 … +50 ℃
Repeatability 0.3 mm @ 200 ... 400 mm & 0.8 mm @ 400 ... 600 mm & 5 mm @ 600 … 1500 mm
Output type NPN / PNP & 4 ... 20 m

No additional information at this time.

Downloads

CE CE_SP_OSM41_V1.0_EN.pdf
UL UL_SP_OSM41_V1.0_EN.pdf
Datasheet DS_SP_OSM41-CMOS_V1.0_EN.pdf
3D Drawing CAD_SP_OSM41-CMOS_V1.0.stp
Manual UM_SP_OSM41-LIU_V1.0_EN&CN.pdf
