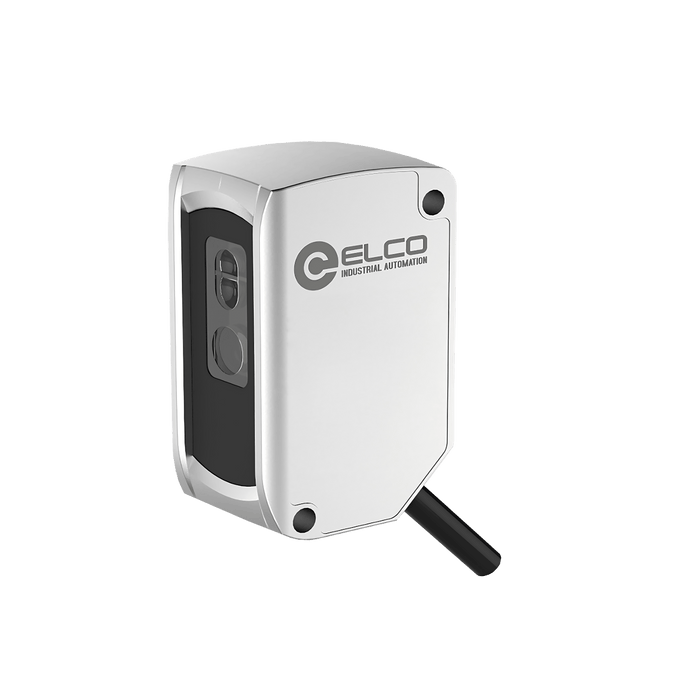

Distance Sensor, OSM41-Series, Laser Distance Sensor (TOF), Infared laser + Laser indication, Operating range 50…2500 mm, Resolution 3 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

OSM41-K2500CB6/485

SKU OSM41-K2500CB6/485
by ELCO Industrial Automation

Distance Sensor, OSM41-Series, Laser Distance Sensor (TOF), Infared laser + Laser indication, Operating range 50…2500 mm, Resolution 3 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

$199.17 - $199.17
$199.17
$199.17 - $199.17
$199.17
Availability:
In stock

Distance Sensor, OSM41-Series, Laser Distance Sensor (TOF), Infared laser + Laser indication, Operating range 50…2500 mm, Resolution 3 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

Specifications

Detection method TOF ranging
Connection Cable
Connection type 2 m, PVC
Light source Infrared laser + Red LED indication / Class 1
Spot size 9 × 5.5 cm @ 2.5 m
Response time 30 HZ
Housing Material Die-cast zinc
Supply voltage 10 ... 30 V DC
Anti-ambient light ≤ 3000 lux
Repeatability 5 mm

No additional information at this time.

Downloads

CE CE_SP_OSM41_V1.0_EN.pdf
UL UL_SP_OSM41_V1.0_EN.pdf
Datasheet DS_SP_OSM41-TOF_V1.0_EN.pdf
3D Drawing CAD_SP_OSM41-TOF_V1.0.stp
Manual UM_SP_OSM41-TOF-485_V1.0_EN&CN.pdf
