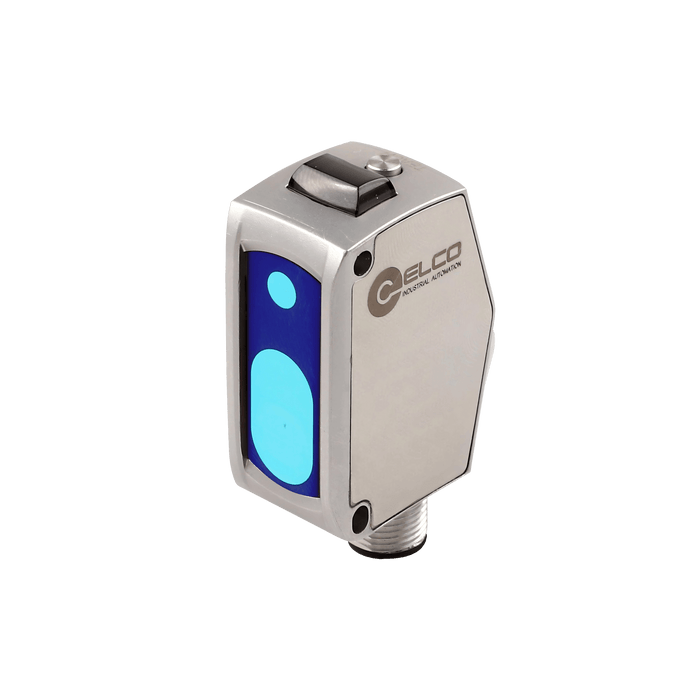

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…800 mm, Resolution 0.1 mm, NPN or PNP, IO-Link, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

OSM40-KL800CB6Q12.1/IO

SKU OSM40-KL800CB6Q12.1/IO
by ELCO Industrial Automation

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…800 mm, Resolution 0.1 mm, NPN or PNP, IO-Link, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

$254.75 - $254.75
$254.75
$254.75 - $254.75
$254.75
Availability:
In stock

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…800 mm, Resolution 0.1 mm, NPN or PNP, IO-Link, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

Specifications

Detection method CMOS ranging
Sensing range 150 … 800 mm
Light source Red laser / Class 2
Spot size 1 mm @ 400 mm
Resolution 0.1 mm
Repeatability 0.5 mm @ 150 ... 400 mm & 1 mm @ 400 ... 600 mm & 3 mm @ 600 ... 800 mm
Output type NPN / PNP & IO-Link
Output status L.O / D.O
Response time 1.5 ms / 5

No additional information at this time.

Downloads

CE CE_SP_OSM40_V1.0_EN.pdf
UL UL_SP_OSM40_V1.0_EN.pdf
Datasheet DS_SP_OSM40_V1.0_EN.pdf
3D Drawing CAD_SP_OSM40-Q12.1_V1.0.stp
Manual UM_SP_OSM40-IO_V1.0_EN&CN.pdf
Configuration file Config_SP_OSM40-IODD_V1.2.zip
