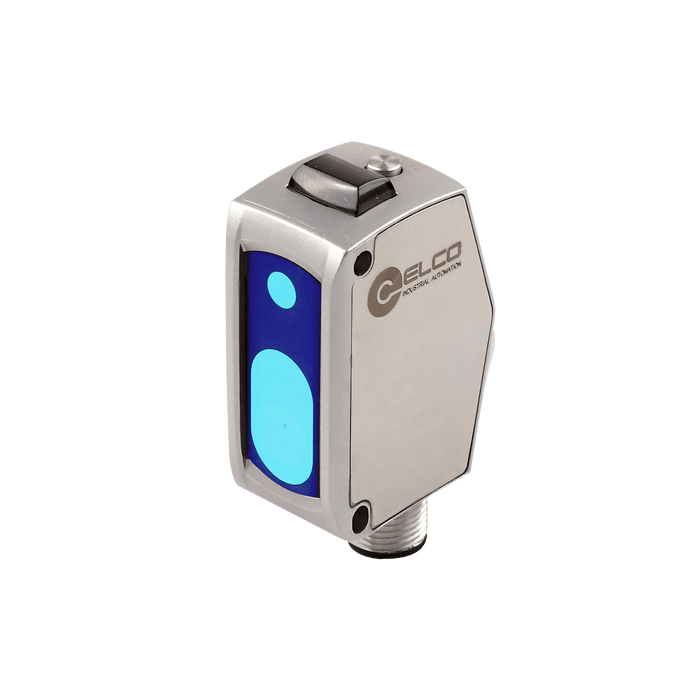

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…800 mm, Resolution 0.1 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

OSM40-KL800CB6Q12.1/485

SKU OSM40-KL800CB6Q12.1/485
by ELCO Industrial Automation

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…800 mm, Resolution 0.1 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

$254.75 - $254.75
$254.75
$254.75 - $254.75
$254.75
Availability:
In stock

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…800 mm, Resolution 0.1 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

Specifications

Connection Connector
IP rating IP67
Connection type M12, 5-pin
Anti-ambient light ≤ 3000 lux
Detection method CMOS ranging
Sensing range 150 … 800 mm
Light source Red laser / Class 2
Repeatability 0.5 mm @ 150 ... 400 mm & 1 mm @ 400 ... 600 mm & 3 mm @ 600 ... 800 mm
Output type NPN / PNP & RS-485;

No additional information at this time.

Downloads

CE CE_SP_OSM40_V1.0_EN.pdf
UL UL_SP_OSM40_V1.0_EN.pdf
Datasheet DS_SP_OSM40_V1.0_EN.pdf
3D Drawing CAD_SP_OSM40-Q12.1_V1.0.stp
Manual UM_SP_OSM40-485_V1.0_EN&CN.pdf
