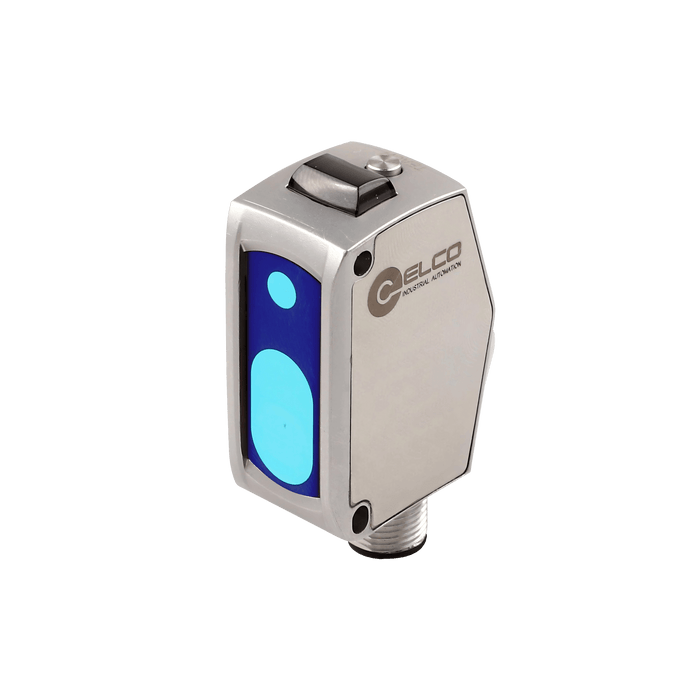

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 35…70 mm, Resolution 0.01 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

OSM40-KL70CB6Q12.1/485

SKU OSM40-KL70CB6Q12.1/485
by ELCO Industrial Automation

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 35…70 mm, Resolution 0.01 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

$254.75 - $254.75
$254.75
$254.75 - $254.75
$254.75
Availability:
In stock

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 35…70 mm, Resolution 0.01 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

Specifications

Connection Connector
IP rating IP67
Connection type M12, 5-pin
Light source Red laser / Class 2
Spot size 0.1 mm @ 50 mm
Resolution 0.01 mm
Response time 1.5 ms / 5 ms / 10 ms
Supply voltage 10 ... 30 V DC
Ambient temperature -10 … +50 ℃
Anti-ambient light ≤ 3000 lux
Repeatability 0.05 mm @ 35 .

No additional information at this time.

Downloads

CE CE_SP_OSM40_V1.0_EN.pdf
UL UL_SP_OSM40_V1.0_EN.pdf
Datasheet DS_SP_OSM40_V1.0_EN.pdf
3D Drawing CAD_SP_OSM40-Q12.1_V1.0.stp
Manual UM_SP_OSM40-485_V1.0_EN&CN.pdf
