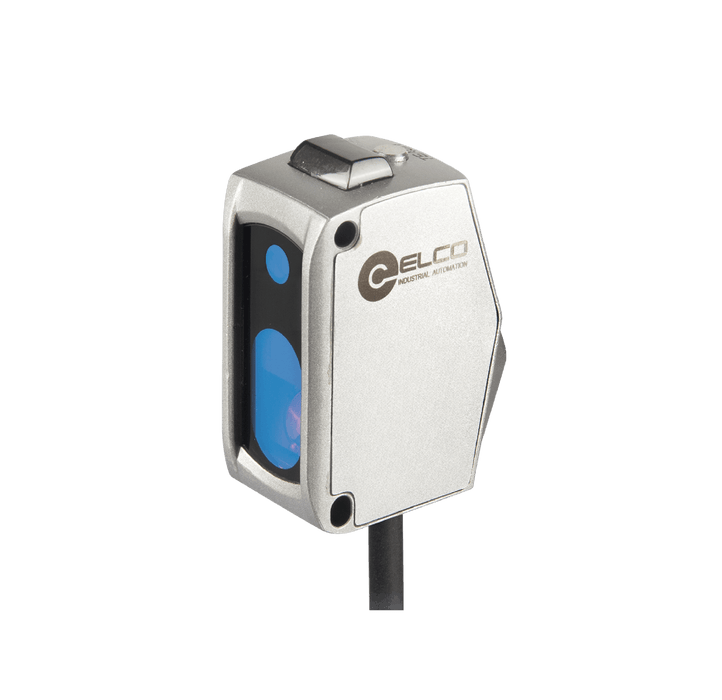

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 100…300 mm, Resolution 0.1 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

OSM40-KL300CB6/485

SKU OSM40-KL300CB6/485
by ELCO Industrial Automation

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 100…300 mm, Resolution 0.1 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

$254.75 - $254.75
$254.75
$254.75 - $254.75
$254.75
Availability:
In stock

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 100…300 mm, Resolution 0.1 mm, NPN or PNP, RS-485, 10…30V DC, -10…50°C, IP67, Cable 2 m

Specifications

Connection Cable
IP rating IP67
Connection type 2 m, PVC
Sensing range 100 … 300 mm
Light source Red laser / Class 2
Anti-ambient light ≤ 3000 lux
Resolution 0.1 mm
Output type NPN / PNP & RS-485
Output status L.O / D.O
Housing Material Stainless steel
Supply voltage 10 ... 30 V DC

No additional information at this time.

Downloads

CE CE_SP_OSM40_V1.0_EN.pdf
UL UL_SP_OSM40_V1.0_EN.pdf
Datasheet DS_SP_OSM40_V1.0_EN.pdf
3D Drawing CAD_SP_OSM40_V1.0.stp
Manual UM_SP_OSM40-485_V1.0_EN&CN.pdf
