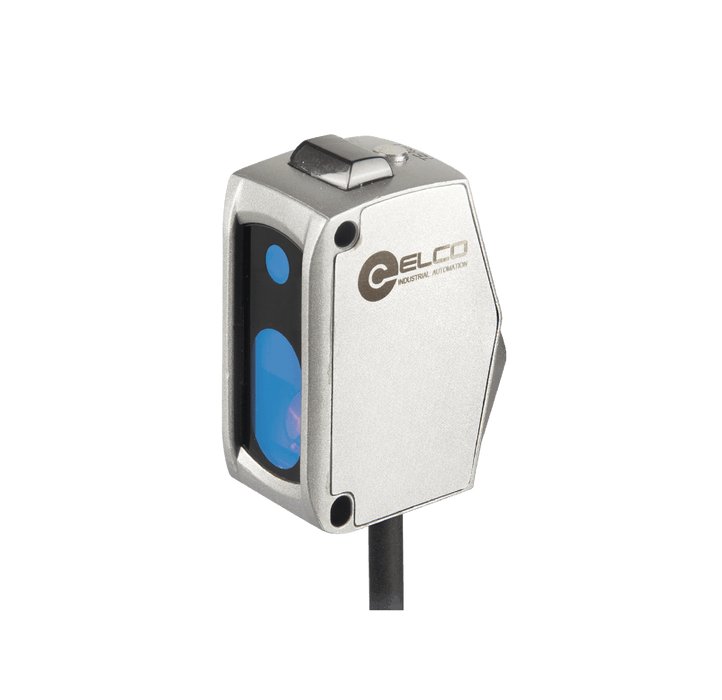

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…2000 mm, Resolution 1 mm, NPN or PNP×2, 10…30V DC, -10…50°C, IP67, Cable 2 m

OSM40-KL2000C2B6

SKU OSM40-KL2000C2B6
by ELCO Industrial Automation

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…2000 mm, Resolution 1 mm, NPN or PNP×2, 10…30V DC, -10…50°C, IP67, Cable 2 m

$233.70 - $233.70
$233.70
$233.70 - $233.70
$233.70
Availability:
In stock

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…2000 mm, Resolution 1 mm, NPN or PNP×2, 10…30V DC, -10…50°C, IP67, Cable 2 m

Specifications

Spot size 2 mm @ 600 mm
Detection method CMOS ranging
Sensing range 150 ... 2000 mm
Light source Red laser / Class 2
Repeatability 1 mm @ 400 ... 600 mm & 3 mm @ 600 … 1000 mm & 5 mm @ 1000 … 2000 mm
Output type 2 × NPN / PNP
Output status L.O / D.O
Response time 1.5 ms / 5 ms / 10 ms

No additional information at this time.

Downloads

CE CE_SP_OSM40_V1.0_EN.pdf
UL UL_SP_OSM40_V1.0_EN.pdf
Datasheet DS_SP_OSM40_V1.0_EN.pdf
3D Drawing CAD_SP_OSM40_V1.0.stp
Manual UM_SP_OSM40-C2B6_V1.0_EN&CN.pdf
