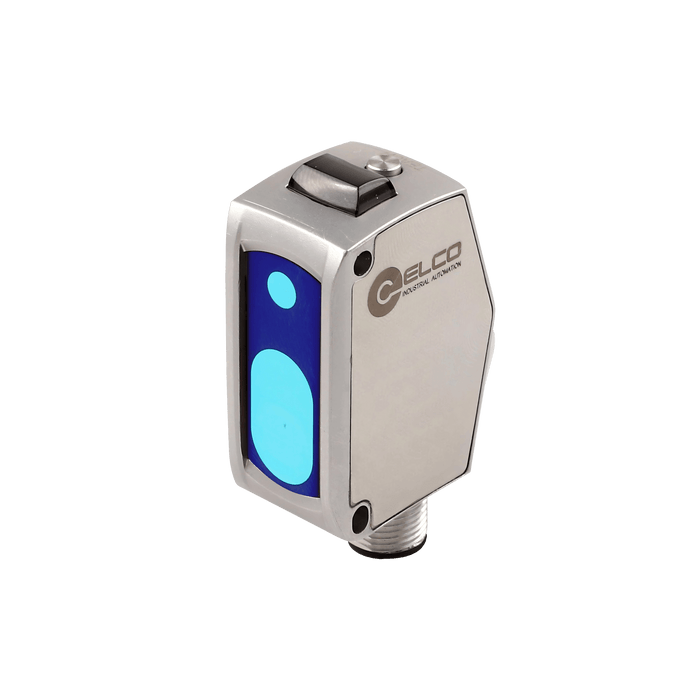

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 60…160 mm, Resolution 0.01 mm, NPN or PNP, Analog 4…20 mA or 0…5V DC or 0…10V DC, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

OSM40-KL160CBLIU6Q12.1

SKU OSM40-KL160CBLIU6Q12.1
by ELCO Industrial Automation

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 60…160 mm, Resolution 0.01 mm, NPN or PNP, Analog 4…20 mA or 0…5V DC or 0…10V DC, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

$254.75 - $254.75
$254.75
$254.75 - $254.75
$254.75
Availability:
In stock

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 60…160 mm, Resolution 0.01 mm, NPN or PNP, Analog 4…20 mA or 0…5V DC or 0…10V DC, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

Specifications

Supply voltage 10 ... 30 V DC
Response time 1.5 ms / 5 ms / 10 ms
Spot size 0.2 mm @100 mm
Light source Red laser / Class 2
Detection method CMOS ranging
Output status L.O / D.O
Output type NPN / PNP & 4 ... 20 mA / 0 ... 5 V / 0 ... 10 V
Repeatability 0.1 mm @ 60 ... 160 mm
Resolution 0.01 mm

No additional information at this time.

Downloads

CE CE_SP_OSM40_V1.0_EN.pdf
UL UL_SP_OSM40_V1.0_EN.pdf
Datasheet DS_SP_OSM40_V1.0_EN.pdf
3D Drawing CAD_SP_OSM40-Q12.1_V1.0.stp
Manual UM_SP_OSM40-LIU_V1.0_EN&CN.pdf
