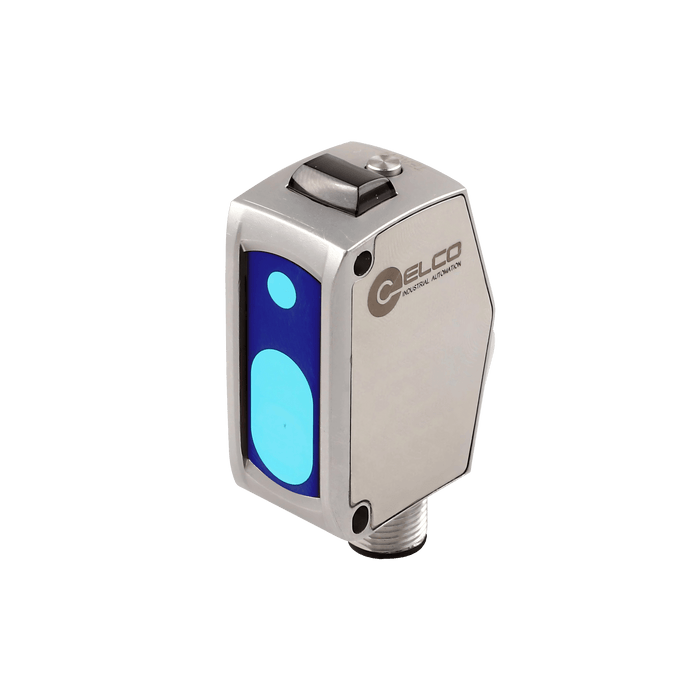

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 60…160 mm, Resolution 0.01 mm, NPN or PNP, IO-Link, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

OSM40-KL160CB6Q12.1/IO

SKU OSM40-KL160CB6Q12.1/IO
by ELCO Industrial Automation

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 60…160 mm, Resolution 0.01 mm, NPN or PNP, IO-Link, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

$254.75 - $254.75
$254.75
$254.75 - $254.75
$254.75
Availability:
In stock

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 60…160 mm, Resolution 0.01 mm, NPN or PNP, IO-Link, 10…30V DC, -10…50°C, IP67, M12 5-pin connector

Specifications

Connection Connector
Detection method CMOS ranging
Resolution 0.01 mm
Load current ≤ 150 mA
Housing Material Stainless steel
Anti-ambient light ≤ 3000 lux
Repeatability 0.1 mm @ 60 ... 160 mm
Output type NPN / PNP & IO-Link
Response time 1.5 ms / 5 ms / 10 ms
Supply voltage 10 ... 30 V DC

No additional information at this time.

Downloads

CE CE_SP_OSM40_V1.0_EN.pdf
UL UL_SP_OSM40_V1.0_EN.pdf
Datasheet DS_SP_OSM40_V1.0_EN.pdf
3D Drawing CAD_SP_OSM40-Q12.1_V1.0.stp
Manual UM_SP_OSM40-IO_V1.0_EN&CN.pdf
Configuration file Config_SP_OSM40-IODD_V1.2.zip
