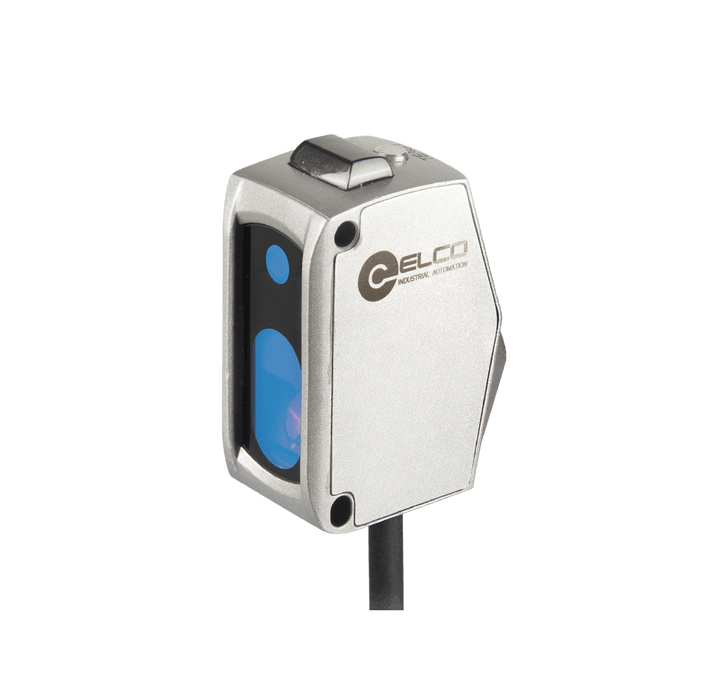

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 110…1000 mm, Resolution 1 mm, NPN or PNP, Analog 4…20 mA or 0…5V DC or 0…10V DC, 10…30V DC, -10…50°C, IP67, Cable 2 m

OSM40-KL1000CBLIU6

SKU OSM40-KL1000CBLIU6
by ELCO Industrial Automation

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 110…1000 mm, Resolution 1 mm, NPN or PNP, Analog 4…20 mA or 0…5V DC or 0…10V DC, 10…30V DC, -10…50°C, IP67, Cable 2 m

$254.75 - $254.75
$254.75
$254.75 - $254.75
$254.75
Availability:
In stock

Distance Sensor, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 110…1000 mm, Resolution 1 mm, NPN or PNP, Analog 4…20 mA or 0…5V DC or 0…10V DC, 10…30V DC, -10…50°C, IP67, Cable 2 m

Specifications

Connection Cable
IP rating IP67
Connection type 2 m, PVC
Housing Material Stainless steel
Anti-ambient light ≤ 3000 lux
Detection method CMOS ranging
Sensing range 110 … 1000 mm
Light source Red laser / Class 2
Spot size 2 mm @ 600 mm
Output type NPN / PNP & 4 ... 20 mA / 0 ... 5 V / 0 ... 10 V

No additional information at this time.

Downloads

CE CE_SP_OSM40_V1.0_EN.pdf
UL UL_SP_OSM40_V1.0_EN.pdf
Datasheet DS_SP_OSM40_V1.0_EN.pdf
3D Drawing CAD_SP_OSM40_V1.0.stp
Manual UM_SP_OSM40-LIU_V1.0_EN&CN.pdf
